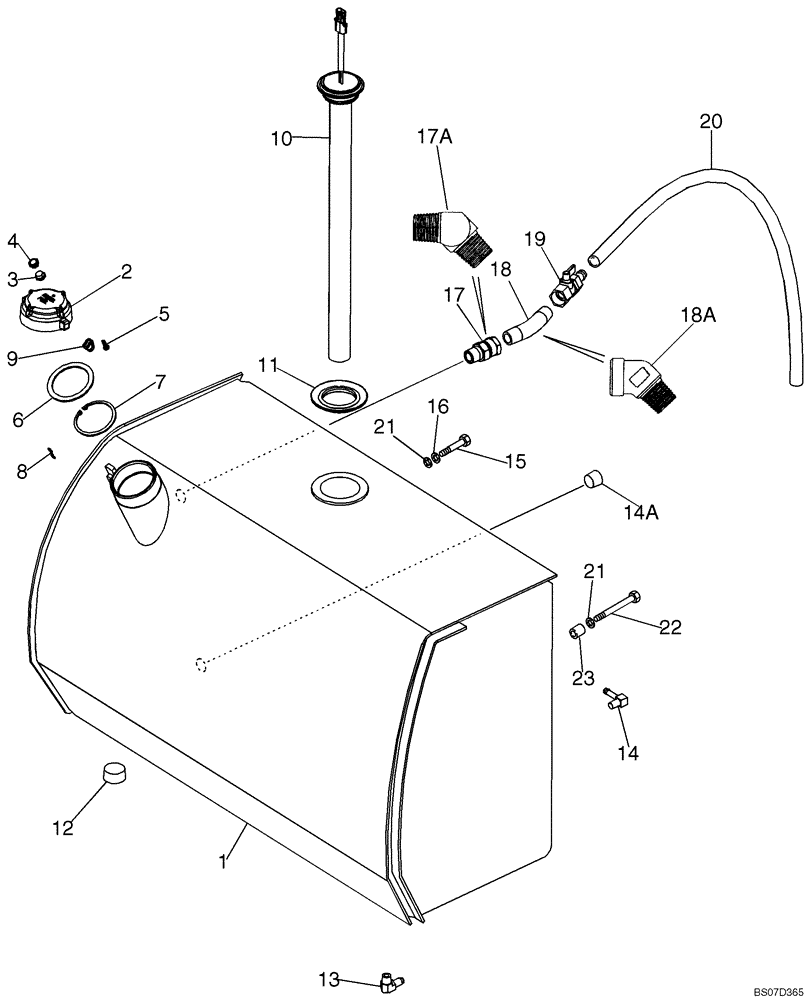

Запчасти Case 750K (03-04) - FUEL TANK (IF USED) (03) - FUEL SYSTEM

REF

INSTRUCTION

DIFFERENCE IN TANKS ARE THE LIFTING BOSSES ON THE TOP OF THE TANKS; THIS HAS THEM; FOR OTHER OPTIONS SEE FIGURE 03-04A

1шт.

405743A4

TANK

Complete; Incl. Ref 1 - 14A, Replaces 405743A3

1шт.

1

405744A3

TANK

Unpainted; Replaces 405744A32

1шт.

2

R57981

FILLER CAP

Incl. Ref 3 - 5

1шт.

3

A50096

VALVE

Relief; Use With Loctite 592

1шт.

4

R57888

FILTER

Use With Loctite 592

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

Use with Loctite No. 242

1шт.

6

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

Rubber

1шт.

7

103-21300

SNAP RING,3.00", Int, #300

1шт.

8

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

9

R48634

FASTENER

Hook

1шт.

10

326277A2

SENSOR

Fuel Level; No Longer Used On This Model For Service Order Ref. 10A

1шт.

10a

87497048

SENSOR

Fuel Level; Longer Sensor, Not Illustrated

1шт.

11

255095A1

GROMMET

1шт.

12

221-37

PLUG

Drain, 1-1/4 PT; Use With Loctite 592

1шт.

13

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

14

87016896

FITTING,90 Degree, 3/8" Hose x 1/4" NPTF, Barbed

Brass, Replaces 217-132

1шт.

14a

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

1шт.

15

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

1шт.

16

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

17

218-903

HYD CONNECTOR,1/2" NPT x 1/2"

If Used

1шт.

17a

217-1209

ELBOW

45 Degrees, 1/2-14 Male; If Used

1шт.

18

87415653

PIPE

Bent; If Used

1шт.

18a

217-1086

45 ELBOW,45 Degree, 1/2"-14 Female x 1/2"-14 Male

If Used

1шт.

19

86984713

SHUT-OFF VALVE

1шт.

20

87413240

HOSE ASSY.

Drain

1шт.

21

D44330

SHIM,.031" Thk

Washer

4шт.

22

814-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 8.8

3шт.

23

87440363

SPACER,17.5mm ID x 34.9mm OD x 29mm L

Spacer

3шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

B17577

LOCTITE

No. 242, 6 ml

1шт.
