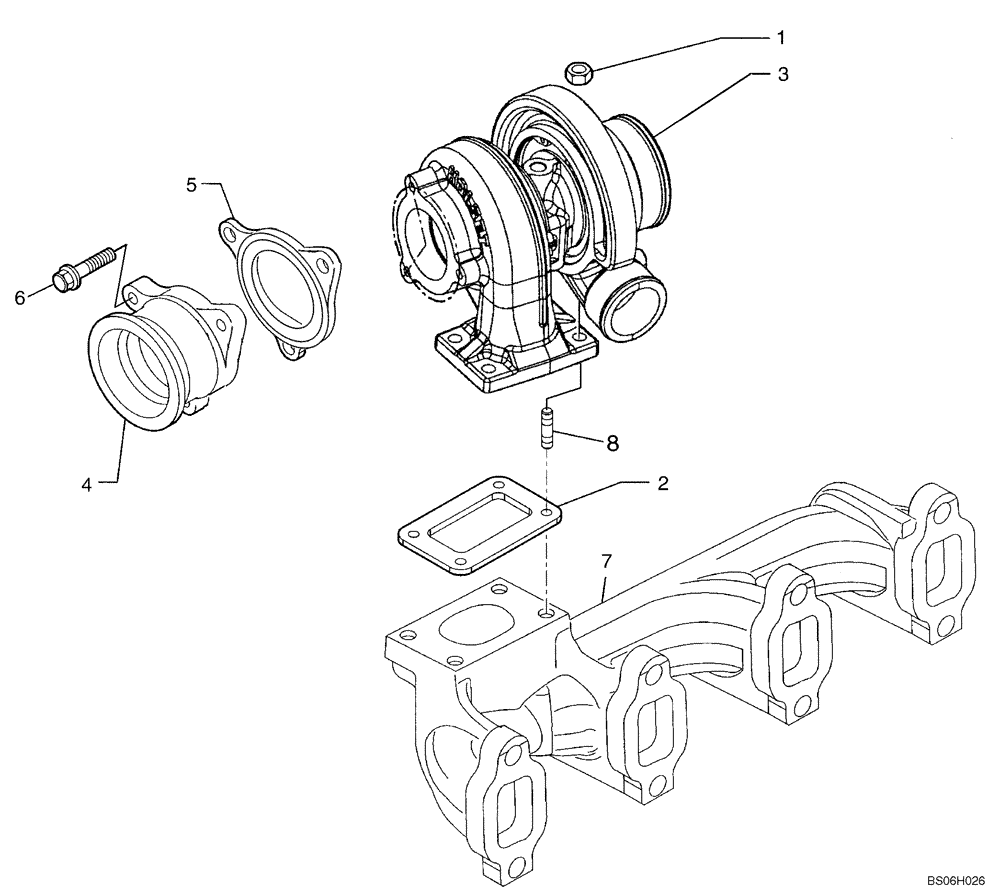

Запчасти Case 750K (02-29) - TURBOCHARGER (02) - ENGINE

1

4899118

FLANGE NUT,M8

4шт.

2

4895133

GASKET,0.5mm Thk

1шт.

3

2852507

TURBOCHARGER

Turbocharger Assembly

1шт.

3

2852507R

REMAN-TURBOCHARGER

Reman for New PN 2852507

1шт.

3

2852507C

CORE-TURBOCHARGER

Return Number

1шт.

4

2852510

TUBE

1шт.

5

2852509

MANIFOLD GASKET,0.5mm Thk

1шт.

6

4898482

BOLT,Flng, M8 x 1.25 x 30mm, Cl 10.9

3шт.

7

REF

INSTRUCTION

EXHAUST MANIFOLD; See Figure 02-21

1шт.

8

4899119

STUD,M8 x 1.25 x 40

4шт.

9

2855273

COLLAR

Collar Screw, Not Illustrated

1шт.
