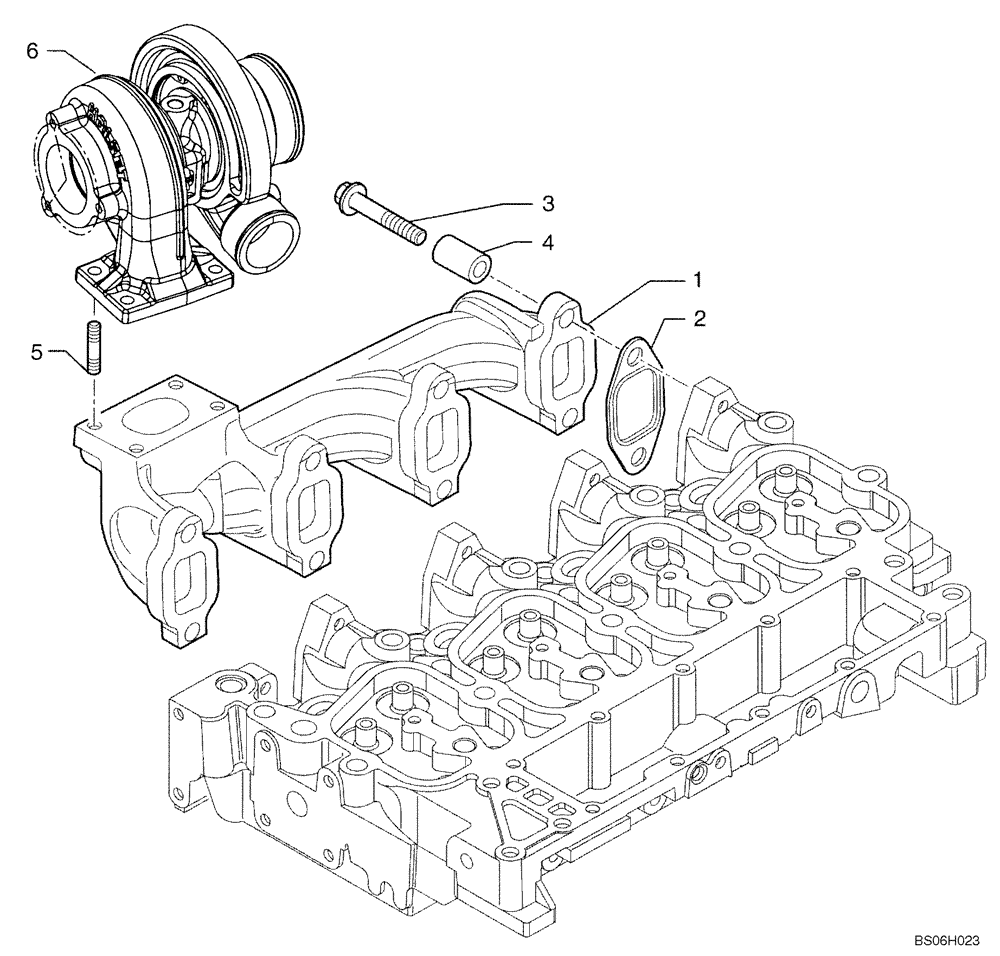

Запчасти Case 750K (02-21) - MANIFOLD - EXHAUST (02) - ENGINE

1

2831203

EXHAUST MANIFOLD

1шт.

2

2852743

MANIFOLD GASKET,1.4mm Thk

Replaces 2830445, Exhaust Manifold Gasket

4шт.

3

2852834

SCREW,Hex Flg, M10 x 1.5 x 40mm

Flange, M10 x 65

8шт.

4

4895336

SPACER

If Used

8шт.

5

4899859

STUD,M8 x 37

Replaces 4899119, Bolt Stud

4шт.

6

REF

INSTRUCTION

TURBOCHARGER; See Figure 2-29

1шт.
