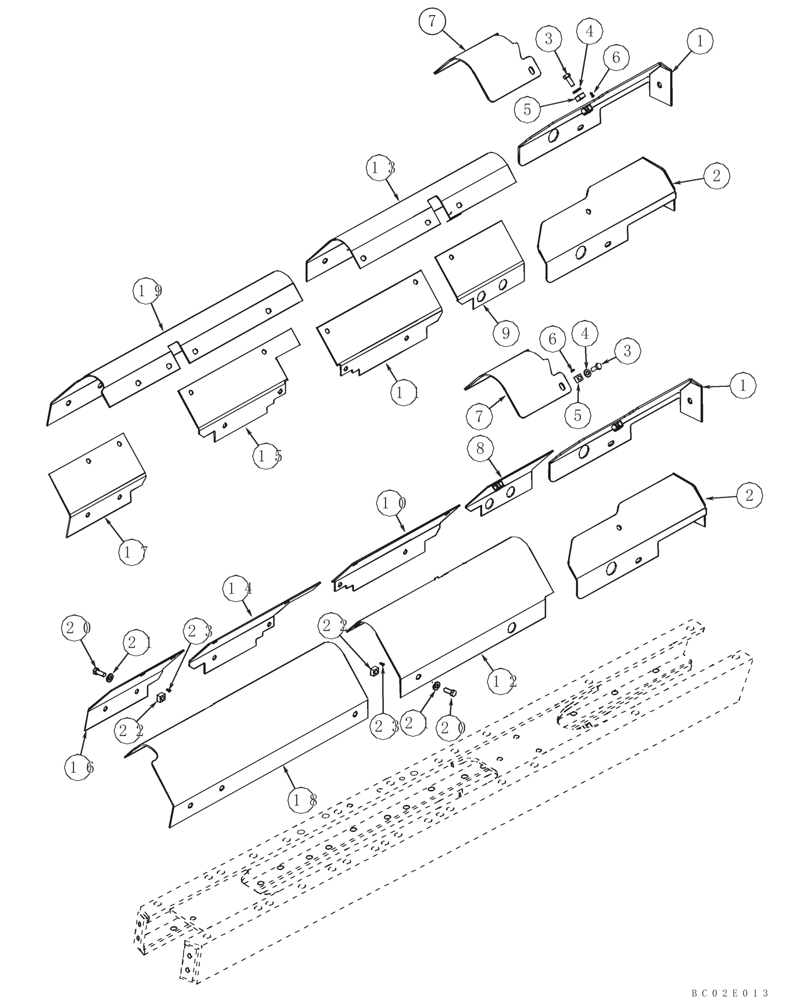

Запчасти Case 750K (05-02) - FRAME, TRACK - COVERS (CLT OR SEALED TRACK CHAIN; IF USED) (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
87420767
Kit, Track Covers; Incl. 1, 2, 7 - 19; Does Not Include 12 mm Spacers; See Ref 36 Fig 09-08
1шт.
1
435817A1
COVER ASSY
Idler; Left-Hand
2шт.
2
435818A1
COVER ASSY
Idler; Right-Hand
2шт.
3
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
8шт.
4
496-21053
WASHER,17/32" x 1 1/16" x .134"
8шт.
5
129-857
SQUARE NUT,Sq, 1/2"-13
4шт.
6
336371A1
PIN,4.88mm OD x 14.23mm L
Nut Retainer
4шт.
7
436969A1
COVER ASSY
Idler
2шт.
8
437562A1
COVER ASSY
Right-Hand; Inner
1шт.
9
437559A1
COVER ASSY
Left-Hand; Inner
1шт.
10
433015A1
COVER ASSY
Right-Hand; Inner
1шт.
11
433012A1
COVER ASSY
Left-Hand; Inner
1шт.
12
433023A1
COVER ASSY
Right-Hand; Outer
1шт.
13
433017A1
COVER ASSY
Left-Hand; Outer
1шт.
14
430881A1
COVER ASSY
Right-Hand; Inner
1шт.
15
430880A1
COVER ASSY
Left-Hand; Inner
1шт.
16
430879A1
COVER ASSY
Right-Hand; Inner
1шт.
17
430878A1
COVER ASSY
Left-Hand; Inner
1шт.
18
430889A1
COVER ASSY
Right-Hand; Outer
1шт.
19
430888A1
COVER ASSY
Left-Hand; Outer
1шт.
20
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
44шт.
21
496-21053
WASHER,17/32" x 1 1/16" x .134"
44шт.
22
129-857
SQUARE NUT,Sq, 1/2"-13
40шт.
23
336371A1
PIN,4.88mm OD x 14.23mm L
Nut Retainer
40шт.
Выбрано товаров: 24
