Запчасти Case 750K (09-41) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS

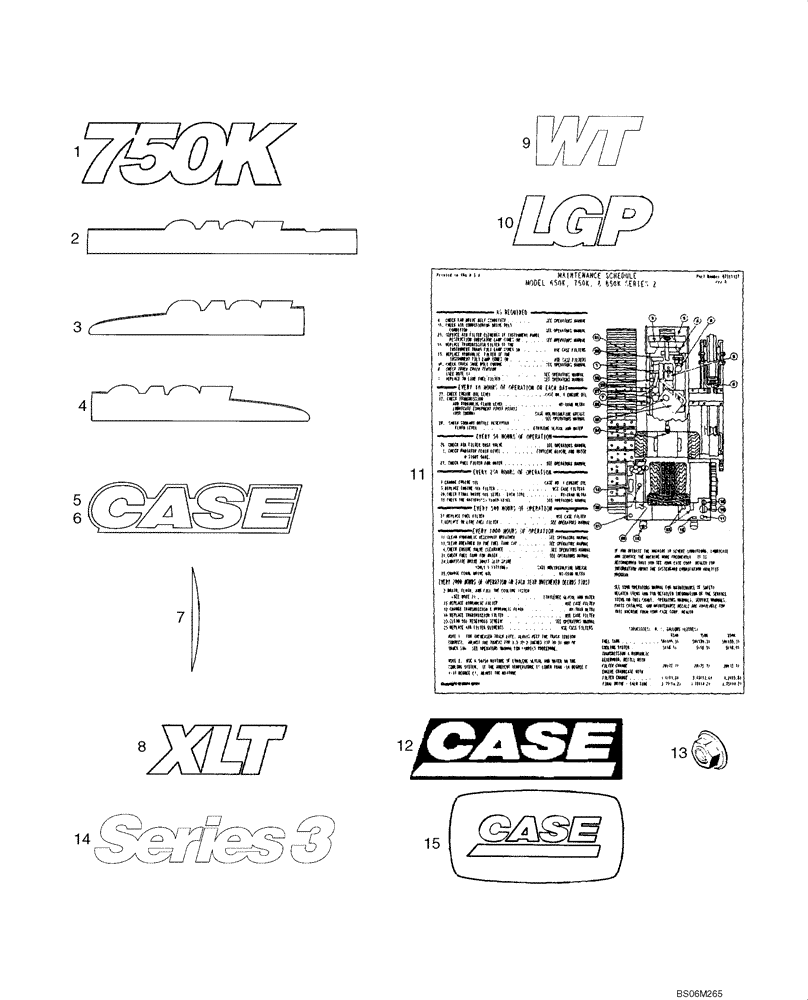

Схема запчастей Case 750K - (09-41) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS
13
9
5
1
10
12
7
15
6
8
14
2
4
3
11

Артикул

Название

Примечание

Количество

1

86992254

DECAL

Model, 750K

2шт.

2

86992257

DECAL

Case, Rear

1шт.

3

86992258

DECAL

Case, Left Rear

1шт.

4

86992259

DECAL

Case, Right Rear

1шт.

5

87408280

DECAL

164 x 722 mm lg; Case, Rear Side

2шт.

6

87408281

DECAL

182 x 786 mm lg; Case, Rear

1шт.

7

87407618

DECAL

Edge

2шт.

8

87408278

DECAL

Long Track (LT) Models

2шт.

9

87408275

DECAL

Wide Track (WT) Models

2шт.

10

87408279

DECAL

Low Ground Pressure (LGP) Models

2шт.

11

87624721

DECAL

Maintenance Schedule Decal

1шт.

12

186989A1

EMBLEM

Emblem, Case; Front Grille

1шт.

13

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Case Emblem

2шт.

14

87412815

DECAL

Series 3

2шт.

15

87415931

DECAL

Case, Engine

3шт.

Выбрано товаров: 15
