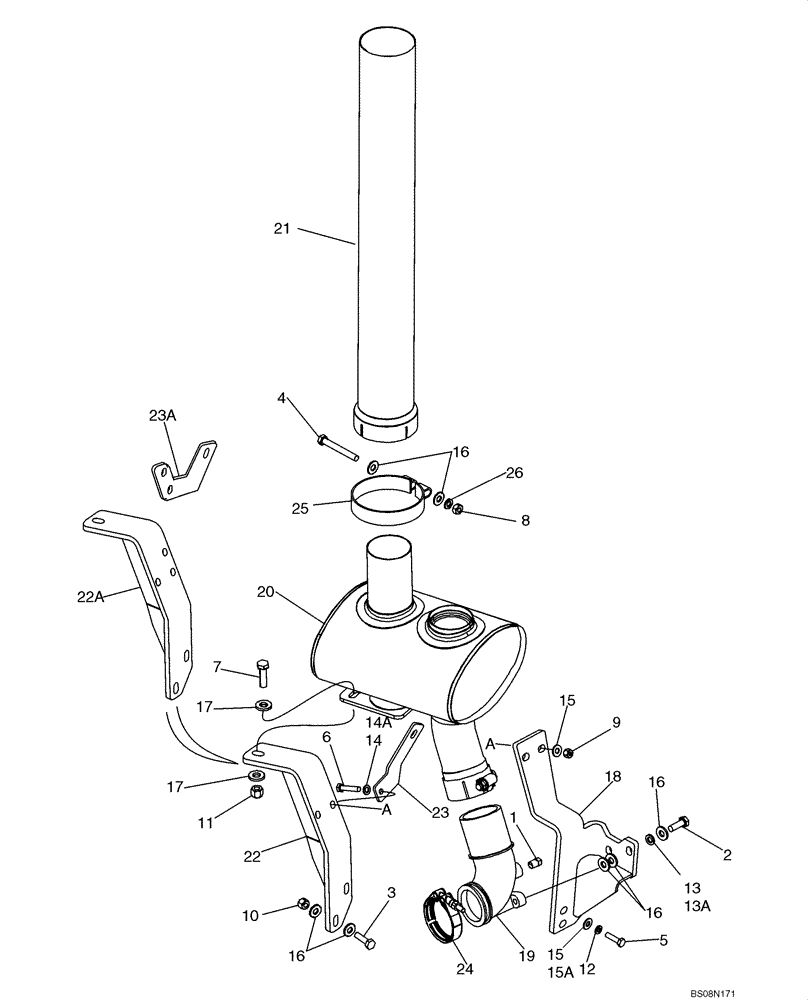

Запчасти Case 750K (02-08) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
217-506
DRAIN PLUG,Sq Hd, 1/4"-18 NPTF
1шт.
2
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
2шт.
3
614-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
2шт.
4
614-10090
BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd
1шт.
5
627-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd
3-4шт.
6
614-8040
BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd
2шт.
7
814-12045
BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8
1шт.
8
829-1410
NUT,M10 x 1.5, Cl 10.9
1шт.
9
832-10408
NUT,M8 x 1.25, Cl 8.8
2-3шт.
10
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
11
832-10412
NUT,M12 x 1.75, Cl 8
1шт.
12
892-11008
LOCK WASHER,8mm ID
3шт.
13
892-11010
LOCK WASHER,M10
No Longer Used In This Location; Order Ref. 13A
1-2шт.
13a
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
3шт.
14
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
No Longer Used In This Location; Order Ref. 14A
2-3шт.
14a
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
4шт.
15
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
No Longer Used In This Location; Order Ref. 15A
5-6шт.
15a
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
2шт.
16
896-15010
WASHER,11mm ID x 24mm OD x 3mm Thk
8-12шт.
17
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
2шт.
18
87308312
BRACKET, SUPPORTING
BRACKET Elbow Support
1шт.
19
87416402
ELBOW
Exhaust Outlet; Replaces J910992 Elbow Used On Some Models
1шт.
20
87311625
MUFFLER
Includes Clamp
1шт.
21
189279A2
PIPE, EXHAUST SYSTEM
PIPE, EXHAUST
1шт.
22
87446365
BRACKET, SUPPORTING
No Longer Available, Order 87324593 Bracket
1шт.
22a
87324593
BRACKET, SUPPORTING
Muffler Support
1шт.
23
87450952
BRACKET, SUPPORTING
Hose Support; 2 Holes; No Longer Available, Order 87324592
1шт.
23a
87324592
BRACKET, SUPPORTING
Hose Support; 3 Holes
1шт.
24
A170467
CLAMP,72mm ID
Includes Hardware
1шт.
25
R27699
CLAMP,114.3mm
1шт.
26
892-11010
LOCK WASHER,M10
1шт.
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
1шт.
Выбрано товаров: 32
