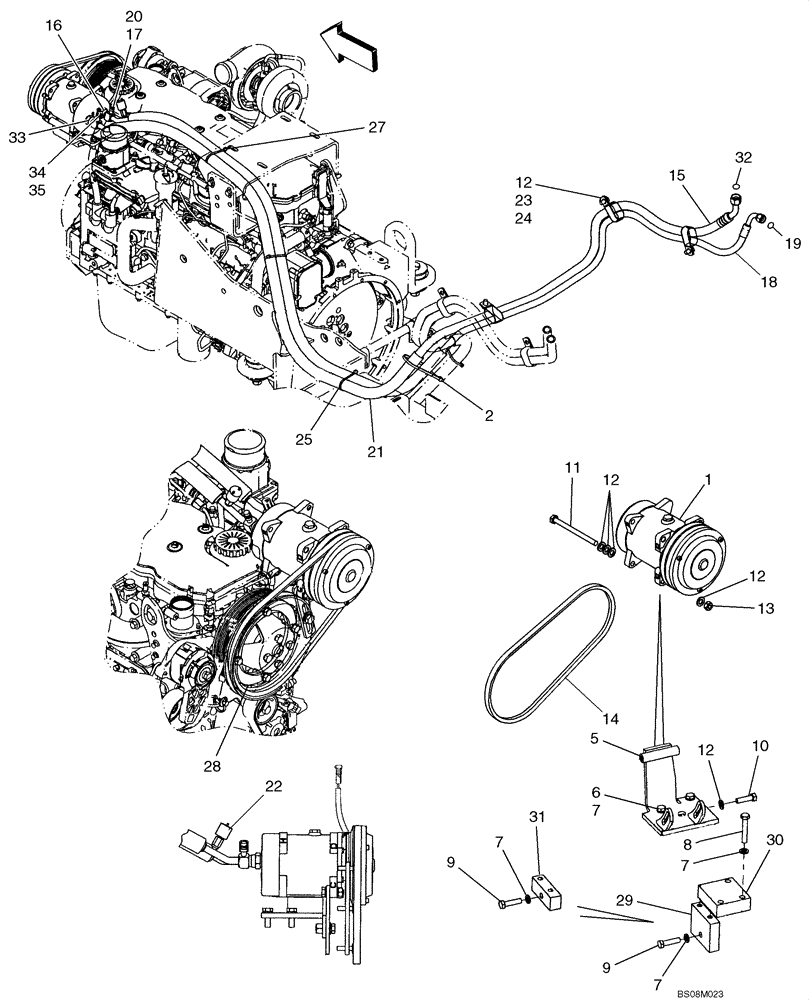

Запчасти Case 750K (09-35) - CAB- AIR CONDITIONING COMPRESSOR (09) - CHASSIS/ATTACHMENTS

1

86993462

AIRCOND. COMPRESSOR

1шт.

1

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

1

86993462R

REMAN-COMPRESSOR

750K SERIES 3 TIER 2 (12/06-)

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Remanufactured

1шт.

1

1999755C2C

CORE-A/C COMPRESSOR

Return Part Number

1шт.

5

87448032

SUPPORT

Bracket, Compressor Support

1шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5-2шт.

7

892-11010

LOCK WASHER,M10

6шт.

8

86977775

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

If Used

3шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

10

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

11

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

14

87451034

V-BELT,12.70 mm W x 1012.80 mm L

Air Conditioner Drive, Replaces 87403165, 1041 mm (41.0 In); Used on some models

1шт.

15

87596736

HOSE ASSY.

A/C Suction Hose, Incl. Ref 32 - 35

1шт.

16

87533612

O-RING,1.93mm Thk x 15.67mm ID, Cl 5, 75 Duro

Compressor End

1шт.

17

1250594C2

CORE

Valve

1шт.

18

87620673

HOSE ASSY.

A/C Discharge Hose, 118 mm W/ 60 Degree Bend Pipe Fitting, Incl. Ref. 16, 17, 19, 20; Replaces 87596735, 116 mm W/ 30 Degree Bend Pipe Fitting; Used On Some Models

1шт.

19

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

Cab End

1шт.

20

122554A1

CAP

High Side Service Port

1шт.

21

87608806

CONDUIT

Convoluted Conduit; If Used

2шт.

22

284273A2

SWITCH, A/C HIGH PRE

High Pressure A/C

1шт.

23

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

24

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Insulated, 25.4 mm Dia

3шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie, Cable; If Used

3шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

27

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

28

87561120

SPACER

AC Pulley Spacer

1шт.

29

87599136

SPACER

Brace, Freon Comp Bracket; If Used

1шт.

30

87599137

BRACE

Spacer, Freon comp Bracket; If Used

1шт.

31

87453233

SUPPORT

Brace Compressor Bracket; If Used

1шт.

32

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

Cab End

1шт.

33

87533612

O-RING,1.93mm Thk x 15.67mm ID, Cl 5, 75 Duro

Compressor End

1шт.

34

1250594C2

CORE

Valve

1шт.

35

122553A1

CAP

Low Side Service Port

1шт.

NSS

NOT SOLD SEPARAT

Pulley And Hardware Comes on With The Engine

1шт.
