(09-32) - CAB - WASHER, WINDSHIELD

Запчасти Case 750K (09-32) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS

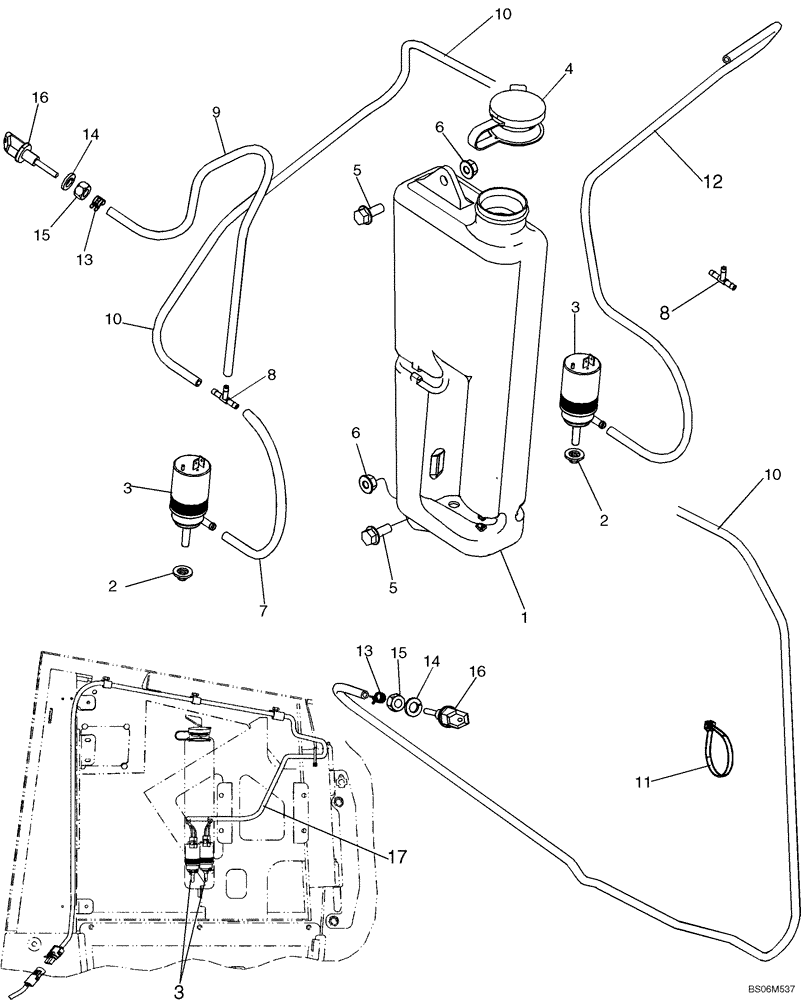

Схема запчастей Case 750K - (09-32) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS
7
10
3
15
17
3
16
14
9
15
2
4
14
16
3
8
11
10
5
2
12
6
10
13
6
13
1
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

389423A3

RESERVOIR, WINDSHIEL

Tank Assembly; Incl. Ref 1 - 4; Not Available As An Assembly, Order Components

1шт.

1

386721A4

RESERVOIR

Windshield Washer Tank

1шт.

2

196830A1

GROMMET

2шт.

3

E47238

PUMP,12V

Motor

2шт.

4

307130A1

COVER

1шт.

5

905-8020

BOLT,Hex Flg, M8 x 20mm

2шт.

6

832-4748

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

7

87409799

HOSE

240 mm (9-1/2 in); Cut From 397154A1

1шт.

8

87427778

FITTING,3/16"

Tee; 3/16 in

2шт.

9

87427794

HOSE

Hose; Replaces 87427794, 700 mm (27-1/2 in); Cut From 397154A1; Used On Some Models

1шт.

10

87427795

HOSE

3000 mm (118 in); Cut From 397154A1

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

13шт.

12

87588652

HOSE WASHER

Hose, Washer Cab Feed

1шт.

13

305578A1

CLAMP,7.65mm - 8.76mm

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

284154A1

NOZZLE,3/8" - 16

Includes A Steel and Rubber Washer, Which Are Not Serviced Separately

2шт.

17

87318846

WIRE HARNESS

Windshield And Door Washer Pumps, 2050 MM Length

1шт.
