Запчасти Case 750K (09-28) - CAB - CONSOLES, SIDE AND REAR (09) - CHASSIS/ATTACHMENTS

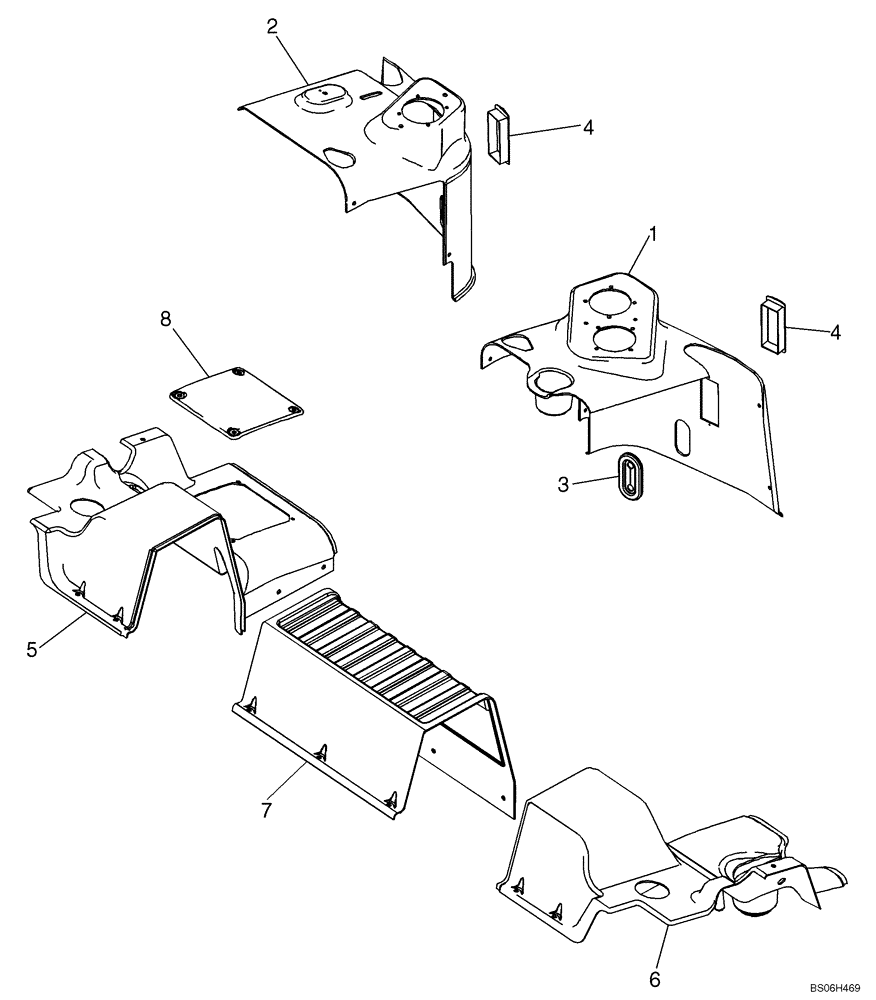

Схема запчастей Case 750K - (09-28) - CAB - CONSOLES, SIDE AND REAR (09) - CHASSIS/ATTACHMENTS
4
7
6
8
4
3
1
5
2

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

INFORMATION COMPLETE INFORMATION NOT AVAILABLE AT TIME OF PRINTING

1шт.

1

87550931

CONSOLE

Right-Hand Console

1шт.

2

87550932

CONSOLE

Left-Hand Console

1шт.

3

76067249

SHIELD

Seal, Lockout/Parking Brake Levers

2шт.

4

76079036

VENT

Louver

2шт.

5

87372084

COVER

Left-Hand Rear HVAC

1шт.

6

87372085

COVER

Right-Hand Rear HVAC

1шт.

7

87372087

COVER

Center Rear HVAC

1шт.

8

87517936

COVER

Controller

1шт.

Выбрано товаров: 9
