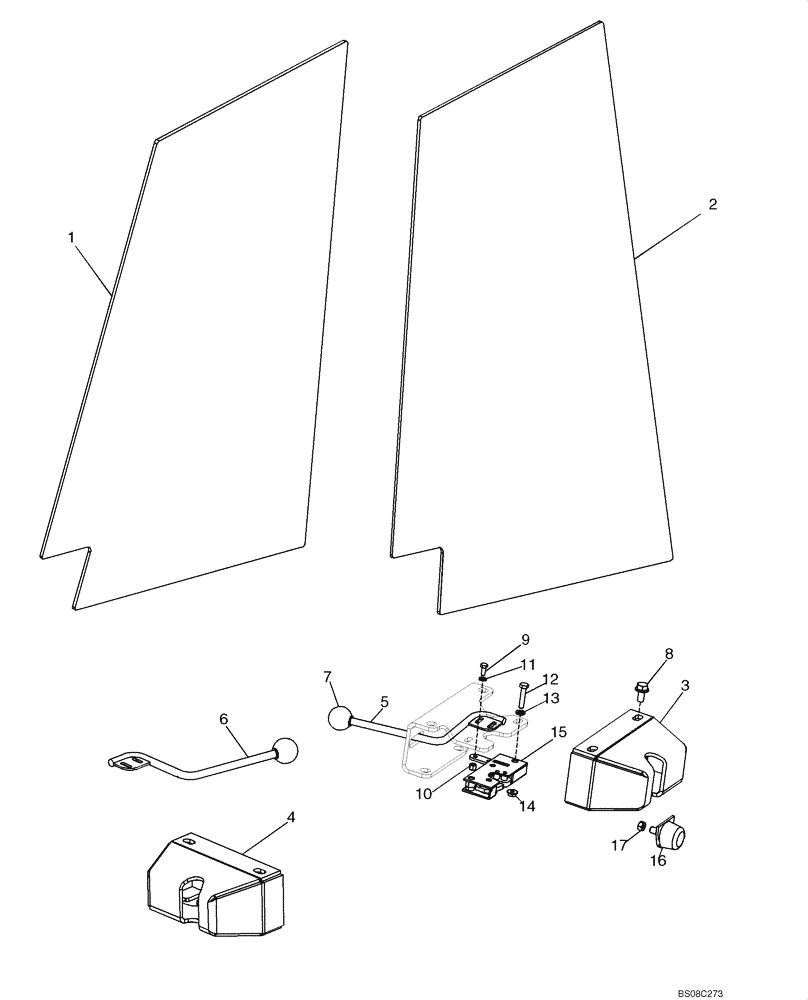

Запчасти Case 750K (09-27B) - CAB - GLASS AND WINDOWS (LEVERS & COVERS) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

The Lever Comes Out Through the Bottom

1шт.

1

87372047

CAB GLASS

Left-Hand Side

1шт.

2

87372048

CAB GLASS

Right-Hand Side

1шт.

3

87517954

DOOR COVER

L.H.; No Longer Used; See Figure 09-27B (01) Ref. 3, 5

1шт.

4

87517955

DOOR COVER

R.H.; No Longer Used; See Figure 09-27B (01) Ref. 4, 5

1шт.

5

87517924

LEVER

L.H.; No Longer Available; See Figure 09-27B (01), Ref. 3, 5

1шт.

6

87517923

LEVER

R.H.; No Longer Available; See Figure 09-27B (01) Ref. 4, 5

1шт.

7

87577757

KNOB

KNOB

4шт.

8

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

23шт.

9

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

5шт.

10

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

5шт.

11

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

12

827-6030

BOLT,Hex, M6 x 30mm, Cl 10.9

6шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

14

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

15

87371997

LATCH

Hold Open

2шт.

16

87550959

BUMPER

BUMPER, Rubber

4шт.

17

425-114

NUT,1/4"-28, G5

4шт.
