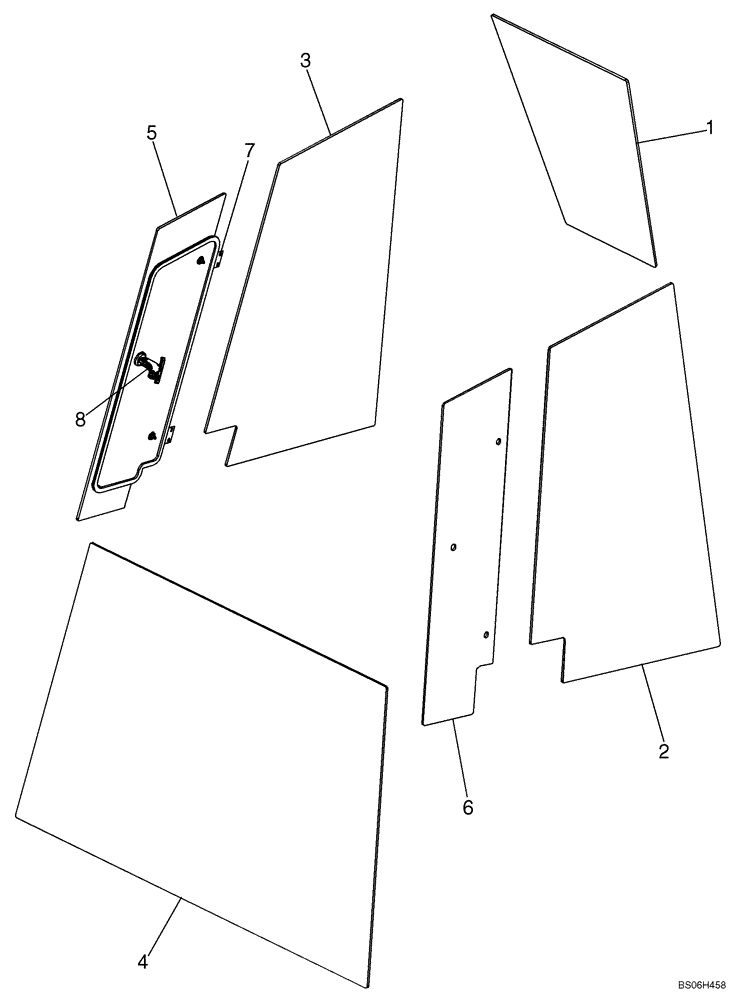

Запчасти Case 750K (09-27) - CAB - GLASS AND WINDOWS (09) - CHASSIS/ATTACHMENTS

1

87372039

CAB GLASS ASSY

Front

1шт.

2

87372048

CAB GLASS

Right-Hand Side

1шт.

3

87372047

CAB GLASS

Left-Hand Side

1шт.

4

87372049

CAB GLASS

Rear

1шт.

5

87372050

WINDOW

Left-Hand Vent; See Figure 09-27A

1шт.

6

87372051

WINDOW

Right-Hand Vent; See Figure 09-27A

1шт.

7

87397400

HINGE

Vent Window; See Figure 09-27A

4шт.

8

87397399

LATCH

Vent Window

2шт.
