Запчасти Case 750K (09-26) - CAB - DOORS (09) - CHASSIS/ATTACHMENTS

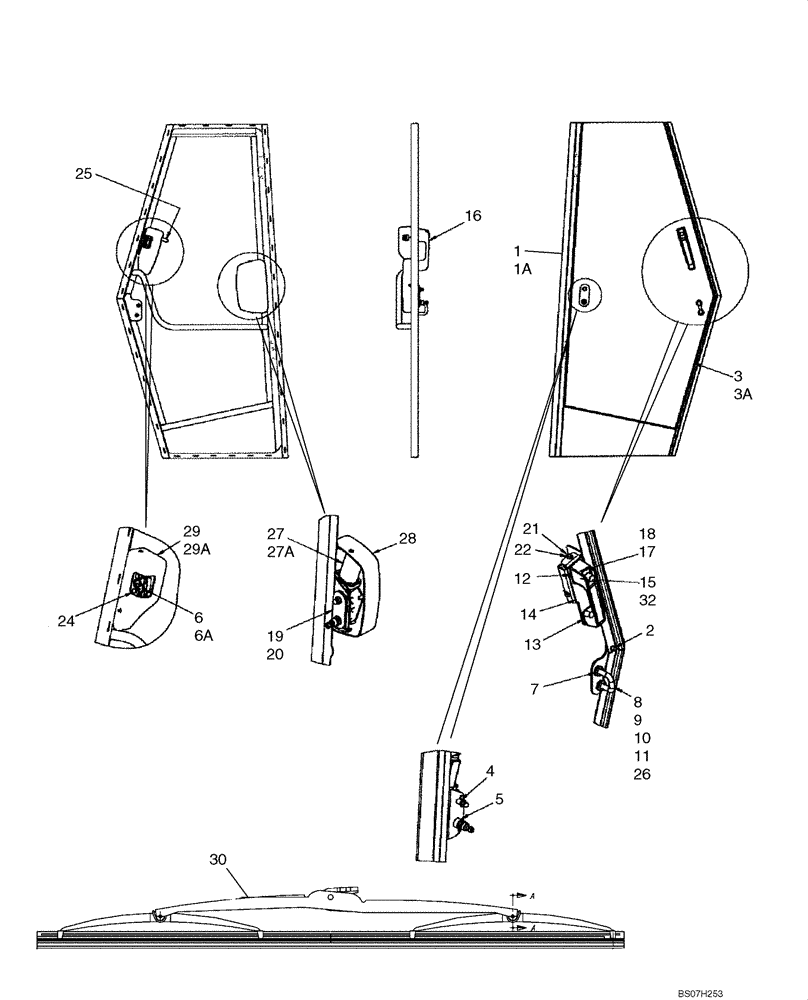

Схема запчастей Case 750K - (09-26) - CAB - DOORS (09) - CHASSIS/ATTACHMENTS
1
20
17
27a
22
10
3
24
29
21
12
11
15
7
27
32
6a
19
26
28
4
16
13
25
29a
8
1a
14
30
3a
5
9
2
18
6

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LEFT-HAND AND RIGHT-HAND CAB DOORS; LEFT-HAND DOOR NOT ILLUSTRATED

1шт.

87550957

DOOR

ASSEMBLY; Right-Hand; Incl. Ref 1, 2, 3, 4 - 6, 7 - 27, 28, 29; Except Where Noted For Left-Hand Door

1шт.

87550958

DOOR

ASSEMBLY;Left-Hand; Incl. Ref 1A, 2, 3A, 4, 5, 6A -26, 27A, 28, 29A; Except Where Noted For Right-Hand Door

1шт.

1

87517953

DOOR

FRAME, Right-Hand Door; Frame Not Available

1шт.

1a

87517952

DOOR

FRAME, Left-Hand Door; Frame Not Available, Not Illustrated

1шт.

2

87577745

BUMPER

Bumper, Glues in Glass

7шт.

3

87371775

CAB GLASS

Right-Hand Door

1шт.

3a

87371774

CAB GLASS

Left-Hand Door

1шт.

4

87400794

BUSHING

Nylon 12 dia

1шт.

5

87400795

BUSHING

Nylon 25 dia

1шт.

6

87371740

LATCH

Interior; Right-Hand Door

1шт.

6a

87371737

LATCH

Interior; Left-Hand Door

1шт.

7

87517859

GROMMET

2шт.

8

87371994

STRIKER PLATE

Hold Open

1шт.

9

87615084

Washer, Flat

2шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

11

87517925

WASHER

Foam

2шт.

12

87517940

GASKET

Door Handle

1шт.

13

87517937

GASKET

Door Handle

1шт.

14

87517921

GASKET,3mm Thk

Door Latch

1шт.

15

87517938

BUSHING,6.5mm ID x 9.5mm OD x 9.5mm L

Door

3шт.

16

60-7083T1

HANDLE

1шт.

17

87615095

Nut, Hex

1шт.

18

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

19

87517920

GASKET,4.8mm Thk

Wiper

1шт.

20

87517958

MOUNTING PLATE

Wiper Mount

1шт.

21

87517945

NUT

No. 10

6шт.

22

87517941

SCREW,#10 - 24 x 5/8"

No. 10 x 5/8

6шт.

23

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

3шт.

24

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

25

87517939

RUBBER SLEEVE

1шт.

26

87517927

LOCK WASHER

Pushnut Fastener

2шт.

27

87550996

WIPER MOTOR

MOTOR, WIPER 12 V, Right-Hand Door; Replaces 87550937

1шт.

27a

87550997

WIPER MOTOR

MOTOR, WIPER 12V, Left-Hand Door; Replaces 87550938

1шт.

28

87371987

DOOR COVER

Wiper Motor

1шт.

29

87371992

DOOR COVER

Latch; Right-Hand Door Latch

1шт.

29a

87371990

DOOR COVER

Latch; Left-Hand Door Latch

1шт.

30

87371767

WIPER BLADE

Door Wiper Blade Not Included In Door Assembly; Purchase Separately

2шт.

87551000

WIPER ARM

Door Wiper Arm, Not Included In Door Assembly; Purchase Separately

2шт.

REF

INSTRUCTION

INFORMATION AND DRAWINGS NOT AVAILABLE AT TIME OF PRINTING

1шт.

87517947

HINGE

Right-Hand Door

2шт.

87517946

HINGE

Left-Hand Door

2шт.

87517949

BRACKET

Right-Hand Door

1шт.

87517948

BRACKET

Left-Hand Door

1шт.
