Запчасти Case 750K (02-06) - AIR CLEANER - MOUNTING (02) - ENGINE

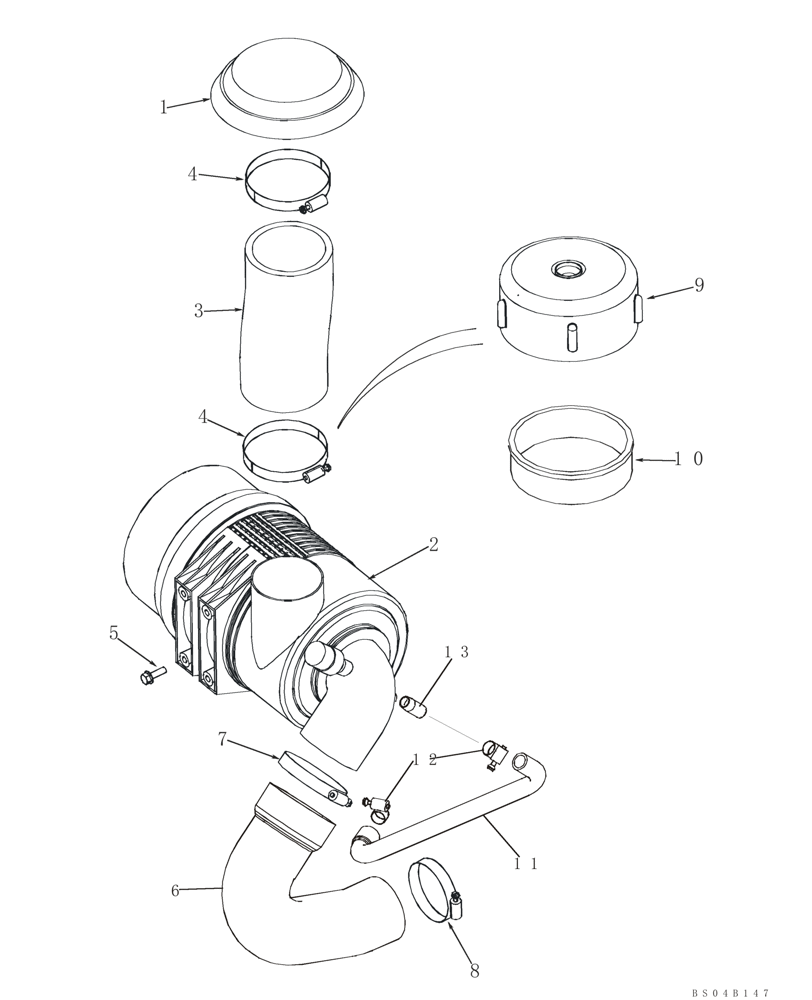

Схема запчастей Case 750K - (02-06) - AIR CLEANER - MOUNTING (02) - ENGINE
bs04b147
1
5
6
10
2
12
9
4
13
4
11
3
8
7

Артикул

Название

Примечание

Количество

1

A170235

CAP

Includes Clamp

1шт.

2

87434701

AIR CLEANER

See Figure 02-07

1шт.

3

429531A1

RADIATOR HOSE,95.30 mm ID x 194.00 mm, SAE J200, SAE J20

1шт.

4

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

2шт.

5

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

7

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

1шт.

6

87431919

LARGE HOSE

HOSE,LARGE Outlet; Lower

1шт.

8

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

1шт.

9

86988018

AIR INTAKE

Includes Clamp; Component Parts Not Serviced Separately; If Used

1шт.

10

86988017

INSERT

Rubber

1шт.

11

87435086

HOSE

1шт.

12

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Replaces 214-1424 Type F #24, Used on some models

2шт.

13

L17985

FITTING,3/8" - 18 NPT

1шт.

Выбрано товаров: 13
