(09-20) - CANOPY, ROPS - ARMRESTS, TOOLBOX AND COVERS

Запчасти Case 750K (09-20) - CANOPY, ROPS - ARMRESTS, TOOLBOX AND COVERS (09) - CHASSIS/ATTACHMENTS

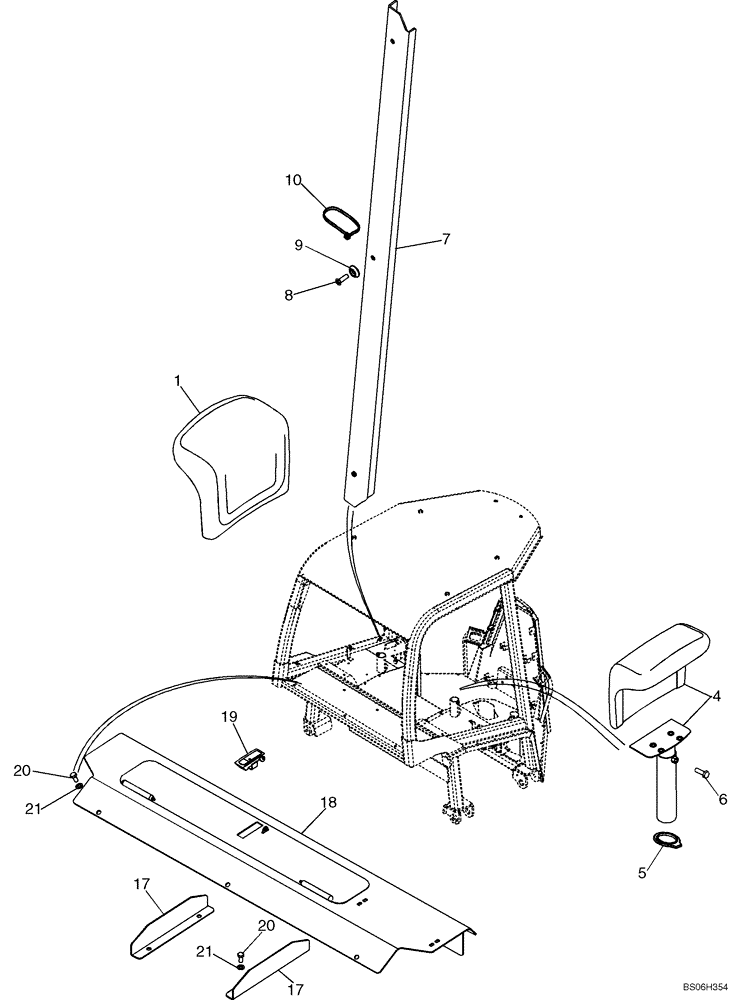

Схема запчастей Case 750K - (09-20) - CANOPY, ROPS - ARMRESTS, TOOLBOX AND COVERS (09) - CHASSIS/ATTACHMENTS
19
7
5
6
8
21
9
1
10
20
20
17
17
18
21
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86989674

ARMREST ASSY.

Includes (1) 87410160 Pad, (1) 86988140 Tube Support, (4) 895-15008 Washer, (4) 832-10408 Nut

2шт.

87410160

ARMREST

1шт.

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

4

86988140

SUPPORT TUBE

1шт.

5

76067464

SEAL

Armrest Seal

2шт.

6

87446967

HANDLE

Adjustable Handle; Armrest, Plastic Handle; Replaces 76067236 Metal Handle Used On Some Models

2шт.

7

86989603

PROTECTIVE COVER

Lamp Harness Cover, ROPS Post

1шт.

8

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

3шт.

9

79076208

WASHER

Nylon

3шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

10шт.

17

87445567

PLATE

Divider Plate

2шт.

18

87446658

PLATE ASSY.

Toolbox Plate; Includes Lid

1шт.

19

356924A3

LATCH

Includes Hardware

1шт.

20

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

9шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.
