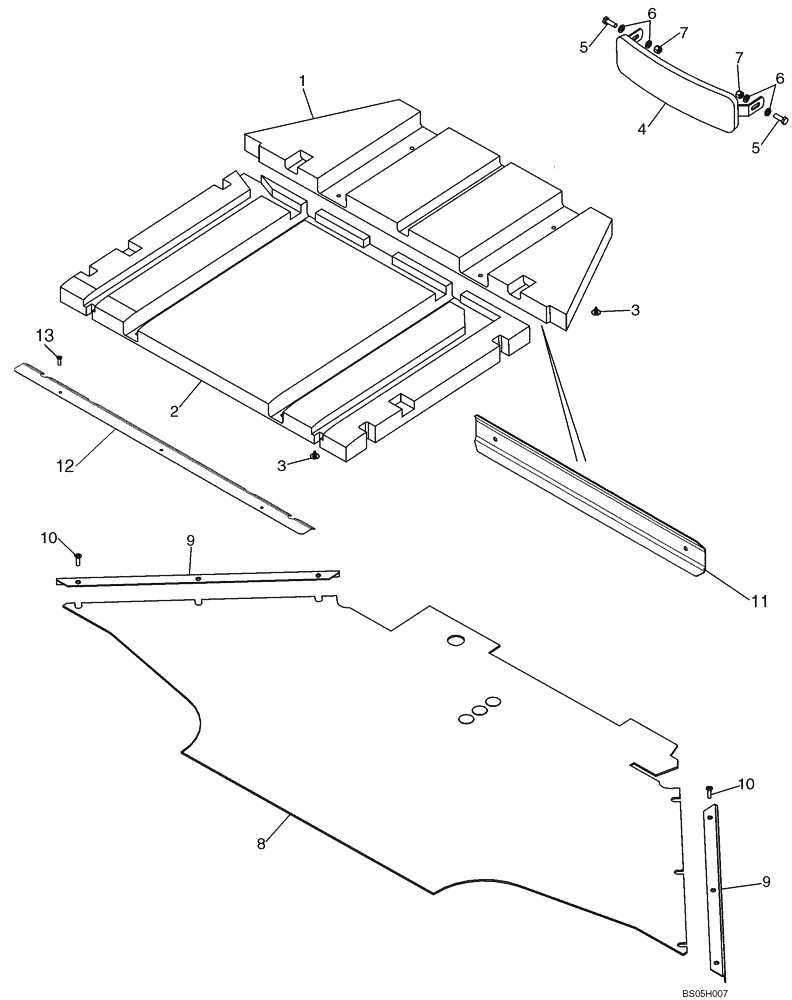

Запчасти Case 750K (09-19) - CANOPY, ROPS - HEADLINER, FLOORMAT AND MIRROR (09) - CHASSIS/ATTACHMENTS

1

443493A1

ROOF LINING

Front ROPS Headliner

1шт.

2

443494A1

ROOF LINING

Rear ROPS Headliner

1шт.

3

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

10шт.

4

367831A1

MIRROR

1шт.

4a

87444309

BRACKET

Mirror Support

1шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

892-11008

LOCK WASHER,8mm ID

4шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

87550963

FLOOR MAT

Floormat

1шт.

9

76067625

RETAINER

2шт.

10

87341593

SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8

M6 x 20 Oval Countersunk, Phillips Head, Black; Replaces 79105220 Oval Head Self Tapping Screw Used On Some Models

6шт.

11

87311638

PLATE

Headliner Retainer, Front

1шт.

12

87311636

PLATE

Headliner Retainer, Rear

1шт.

13

760-14613

SELF-TAP SCREW,Pan Hd, M6.3 x 13

5шт.

14

248-2375

GROMMET,5/8" ID x 7/8" Groove Dia, Str Cut

1шт.
