Запчасти Case 750K (02-05) - COOLANT RECOVERY SYSTEM (02) - ENGINE

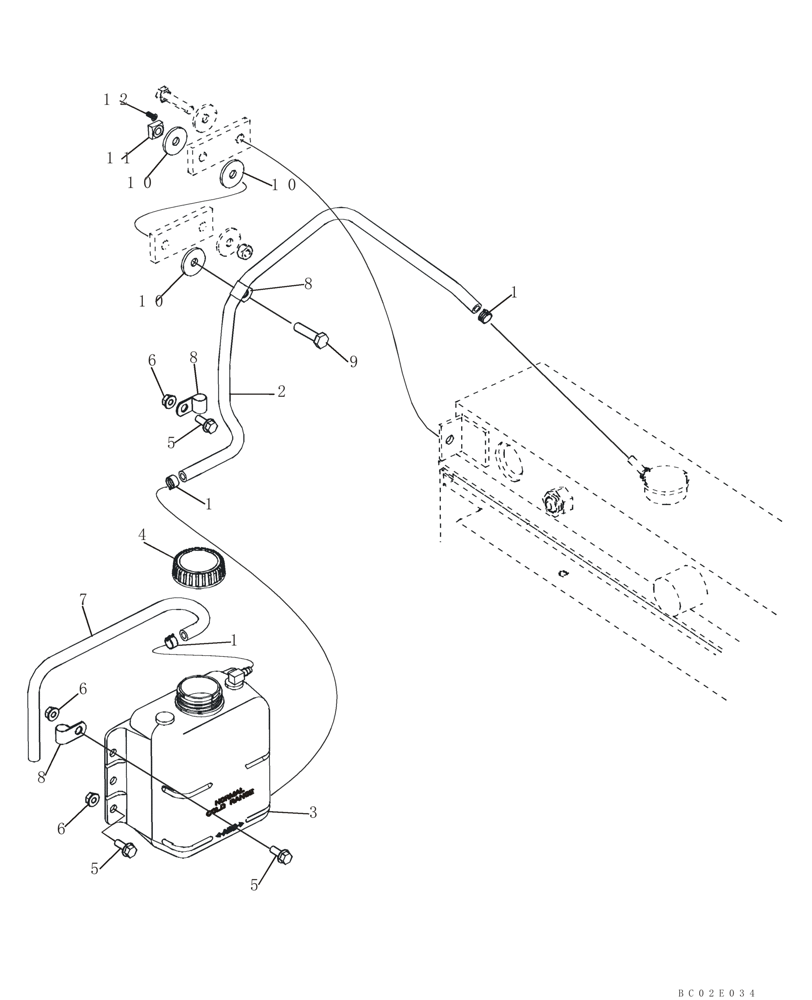

Схема запчастей Case 750K - (02-05) - COOLANT RECOVERY SYSTEM (02) - ENGINE
8
8
11
2
12
6
10
5
6
1
9
1
3
1
6
5
5
10
4
8
10
7
bc02e034

Артикул

Название

Примечание

Количество

1

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

2

433737A1

HOSE,7.90 mm ID x 725.00 mm, SAE J30 or SAE 20R4 Class D1

Cut From Bulk, Radiator to Coolant Reservoir

1шт.

3

L127093

RESERVOIR

1шт.

4

A184079

CAP

1шт.

5

905-8020

BOLT,Hex Flg, M8 x 20mm

4шт.

6

832-4748

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

7

433784A1

HOSE,7.90 mm ID x 445.00 mm, SAE J30 or SAE 20R4 Class D1

Cut From Bulk, Overflow

1шт.

8

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

3шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

10

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

Washer Under Clamp May Be Replaced With Loctite 243 On Some Models

3шт.

11

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10

1шт.

12

336371A1

PIN,4.88mm OD x 14.23mm L

1шт.

Выбрано товаров: 12
