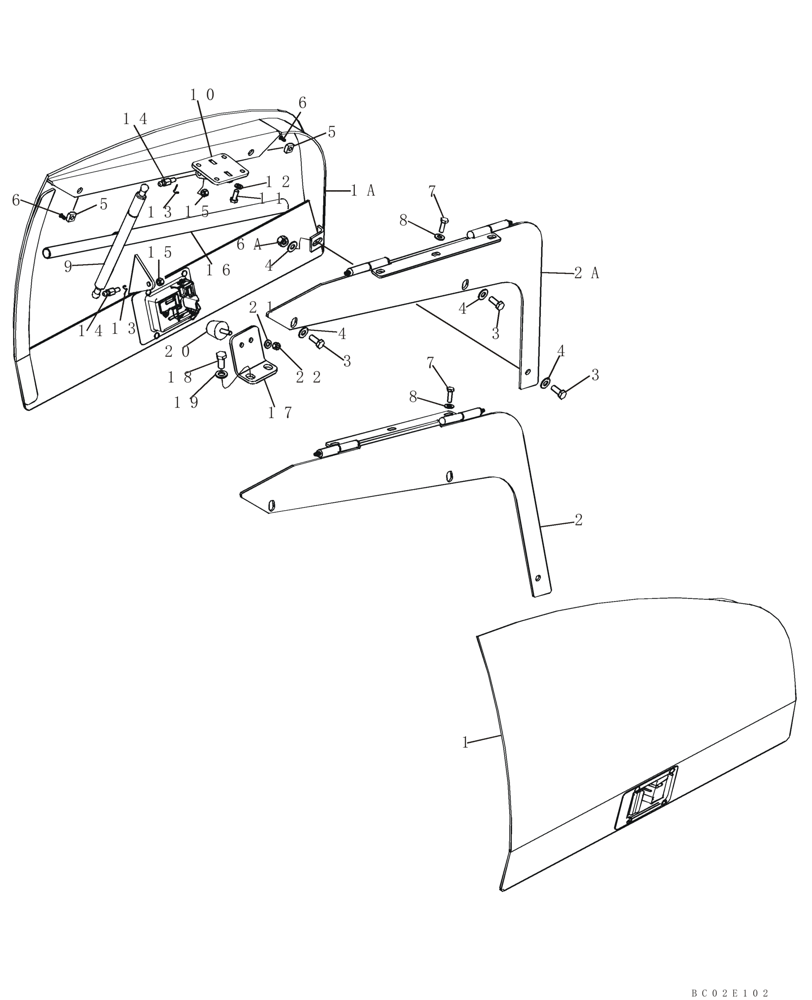

Запчасти Case 750K (09-11) - DOORS, REAR (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

LEFT-HAND AND RIGHT-HAND

1шт.

84121759

DOOR ASSY.

Right-Hand; Incl. Ref 1, 2, 3 - 6A; Replaces 87355343; Replaces 414381A4; Also Includes 87353954 Latch, (4) 151-567 1/4 x 5/8 Rivets

1шт.

84123654

DOOR ASSY.

Left-Hand; Incl. Ref 1A, 2A - 6A; Replaces 87355342; Replaces 414383A4; Also Includes 87353954 Latch, (4) 151-567 1/4 x 5/8 Rivets

1шт.

87353954

LATCH

Door

1шт.

151-567

RIVET,Pop, 1/4" x .625"

4шт.

1

NSS

NOT SOLD SEPARAT

Door, Right-Hand

1шт.

1a

NSS

NOT SOLD SEPARAT

Door, Left-Hand

1шт.

2

87495225

HINGE

HINGE, Door, Right-Hand; Replaces 87758116 Hinge R.H. Used On Some Models; Replaces 414382A4

1шт.

2a

84121765

HINGE

HINGE, Door, Left-Hand; Replaces 87758118 Hinge L.H. Used On Some Models; Replaces 414384A4

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

4

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

4шт.

5

122958A1

SQUARE NUT

M10

2шт.

6

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

6a

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

9

437171A1

GAS STRUT

Gas Spring; Used With Ref 13 Clip; If Used

2шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

9

87403799

SPRING

Gas, Includes Integral Spring Clip Retainer; Replaces 437171A1 Gas Spring and Ref 13 Clip Used On Some Models

2шт.

10

411339A1

MOUNTING PARTS

2шт.

11

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

13

F44883

CLIP,DIN 71805 - S10

If Used

4шт.

14

109498A1

STUD

4шт.

15

231-1445

NUT,5/16"-18, GB

6шт.

16

86990971

HANDLE

Hydraulic Pump, Cab/Canopy Tilt; Door, Left-Hand

1шт.

17

413925A2

PLATE

Door Latch

2шт.

18

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

4шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

20

87330642

BUMPER

28 mm Stud Length; Replaces N7673 Bumper With 28.6 mm Stud Length Used On Some Models

2шт.

21

495-11034

WASHER,5/16", SAE

2шт.

22

231-1445

NUT,5/16"-18, GB

2шт.
