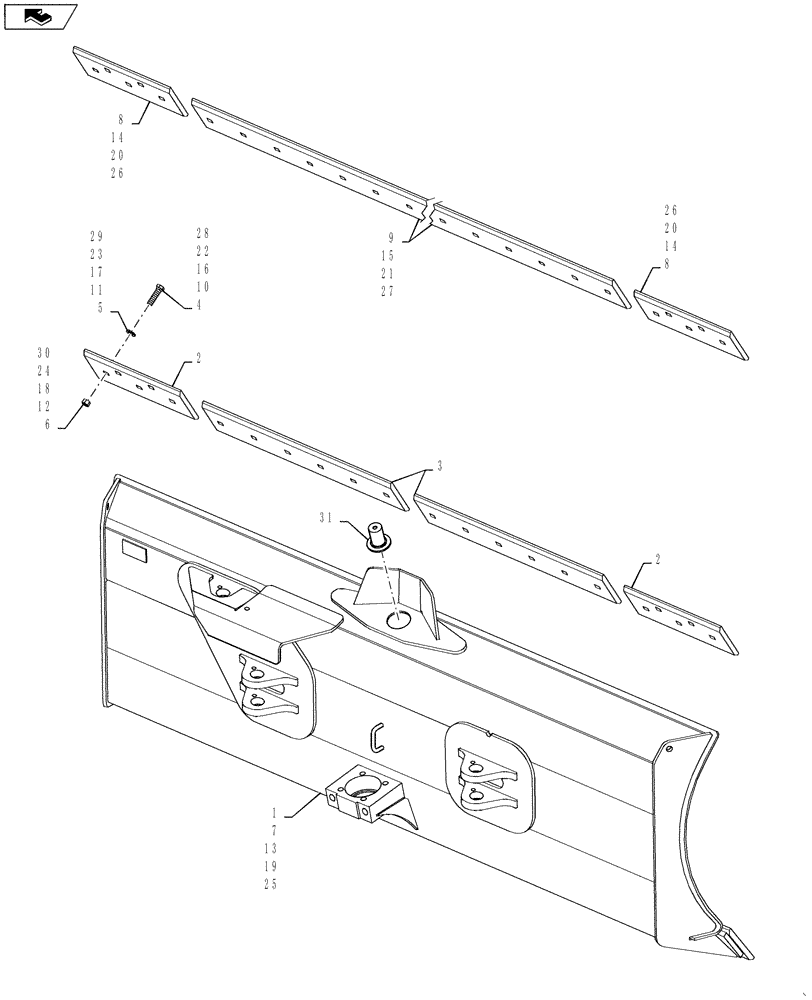

Запчасти Case 750K (09-03) - BLADE, DOZER - EDGES, CUTTING (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

2642 mm (104 inch) DOZER BLADE

1шт.

REF

INSTRUCTION

IF BLADE USES THE STANDARD FLAT CUTTING EDGE (R42490), THEN THESE HEAVY DUTY CURVED CUTTING EDGES WILL WORK

1шт.

87355520

DOZER BLADE

2642 mm (104 inch); Incl. Ref 1 - 6; Replaces 430566A2

1шт.

R41911

EDGE, CUTTING

Heavy Duty Curved Cutting Edges; R.H.; If Used

1шт.

1

NSS

NOT SOLD SEPARAT

Blade

1шт.

R41910

EDGE, CUTTING

Heavy Duty Curved Cutting Edges; L.H.; If Used

1шт.

3

115631A1

EDGE

867 mm (34-1/8 in); Center Cutting Edge; 6 Bolt Holes

2шт.

4

R56474

PLOW BOLT

3/4 x 2-1/2; 8

22шт.

2

R42490

END

442 mm (17-7/16 in); Cutting Edge; If Used

2шт.

5

92-11075

LOCK WASHER,3/4"

22шт.

6

29-1012

NUT,3/4"-10, G8

22шт.

REF

INSTRUCTION

2794 mm (110 inch) DOZER BLADE

1шт.

87355522

DOZER BLADE

2794 mm (110 inch); Incl. Ref 7 - 12; Replaces 430567A2

1шт.

7

NSS

NOT SOLD SEPARAT

Blade

1шт.

9

430157A1

CUTTING EDGE

1908 mm (75-1/8 in); Center Cutting Edge; 13 Bolt Holes

1шт.

10

R56474

PLOW BOLT

3/4 x 2-1/2; 8

23шт.

8

R42490

END

442 mm (17-7/16 in); Cutting Edge; If Used

2шт.

11

92-11075

LOCK WASHER,3/4"

23шт.

12

29-1012

NUT,3/4"-10, G8

23шт.

REF

INSTRUCTION

3048 mm (120 inch) DOZER BLADE

1шт.

87355524

DOZER BLADE

3048 mm (120 in); Incl. Ref 13 - 18; Replaces 430569A2

1шт.

13

NSS

NOT SOLD SEPARAT

Blade

1шт.

15

327539A1

EDGE

2158 mm (85 in); Center Cutting Edge; 14 Bolt Holes

1шт.

16

R56474

PLOW BOLT

3/4 x 2-1/2; 8

24шт.

14

R42490

END

442 mm (17-7/16 in); Cutting Edge; If Used

2шт.

17

92-11075

LOCK WASHER,3/4"

24шт.

18

29-1012

NUT,3/4"-10, G8

24шт.

REF

INSTRUCTION

3150 mm (124 inch) DOZER BLADE

1шт.

87355525

DOZER BLADE

3150 mm (124 in); Incl. Ref 19 - 24; Replaces 430570A2

1шт.

19

NSS

NOT SOLD SEPARAT

Blade

1шт.

21

126519A1

EDGE

2258 mm (88-7/8 in); Center Cutting Edge; 15 Bolt Holes

1шт.

22

R56474

PLOW BOLT

3/4 x 2-1/2; 8

25шт.

20

R42490

END

442 mm (17-7/16 in); Cutting Edge; If Used

2шт.

23

92-11075

LOCK WASHER,3/4"

25шт.

24

29-1012

NUT,3/4"-10, G8

25шт.

REF

INSTRUCTION

3302 mm (130 inch) DOZER BLADE

1шт.

87355528

DOZER BLADE

3302 mm (130 in); Incl. Ref 25 - 30; Replaces 430571A2

1шт.

25

NSS

NOT SOLD SEPARAT

Blade

1шт.

27

430350A1

CUTTING EDGE

2408 mm (94-13/16 in); Center Cutting Edge; 16 Bolt Holes

1шт.

28

R56474

PLOW BOLT

3/4 x 2-1/2; 8

26шт.

26

R42490

END

442 mm (17-7/16 in); Cutting Edge; If Used

2шт.

29

92-11075

LOCK WASHER,3/4"

26шт.

30

29-1012

NUT,3/4"-10, G8

26шт.

31

419235A1

PIN,44.42mm OD x 89.8mm L

Pitch Pin; Pitchdozer Pivot; Welded

1шт.
