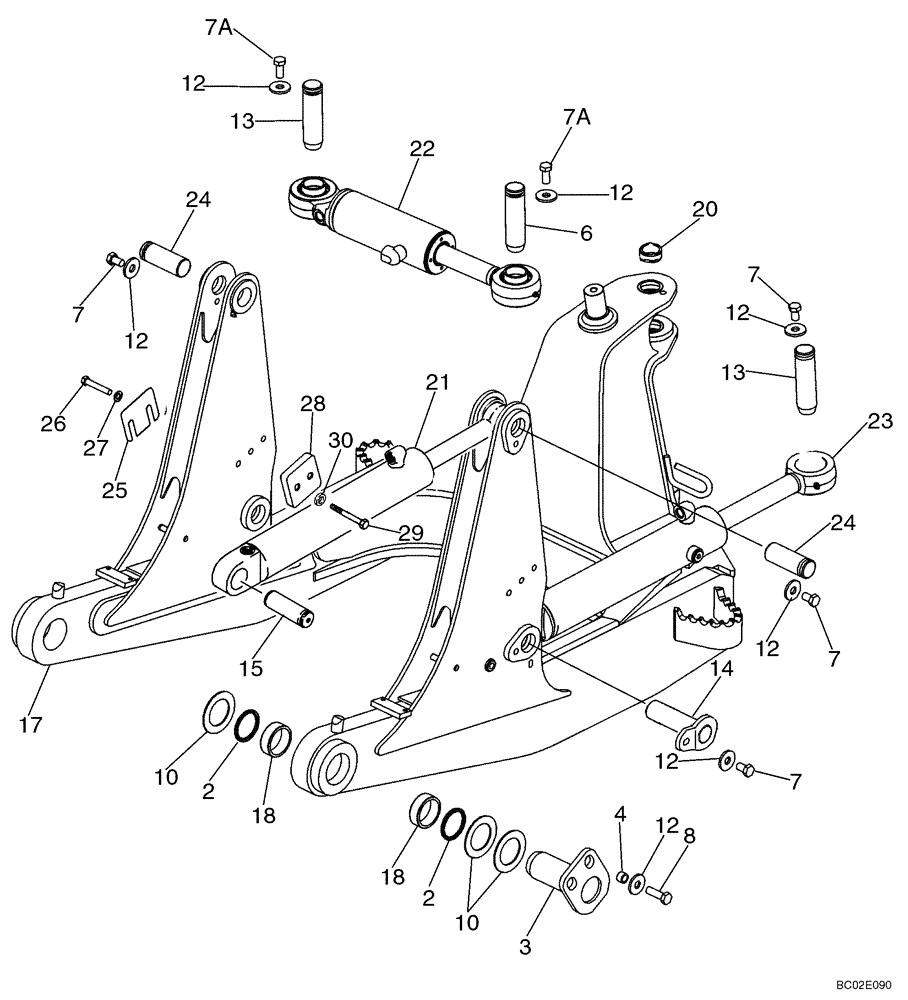

Запчасти Case 750K (09-01) - FRAME, LIFT - CYLINDERS, MOUNTING (09) - CHASSIS/ATTACHMENTS

2

L113522

SEAL

Use Loctite No. 271

4шт.

B17500

LOCTITE

No. 271, 6 ml

1шт.

3

405608A1

PIN,63.6mm OD x 183mm L

2шт.

4

419041A1

SPACER

4шт.

6

435157A1

GROOVED PIN,44.42mm OD x 165mm L

Rod End; Tilt Cylinder

1шт.

7

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

6шт.

7a

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

8

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

10

495-81283

WASHER,2 5/8" x 4" x .109"

Used As A Shim

6шт.

12

419223A1

WASHER

12шт.

13

435157A1

GROOVED PIN,44.42mm OD x 165mm L

Tilt and Angle Cylinders

3шт.

14

419205A1

PIN

Closed End; Angle Cylinder

2шт.

15

405607A1

GROOVED PIN,44.42mm OD x 165mm L

Lift Cylinder

2шт.

17

87345906

FRAME ASSY

Incl. Ref 18 - 20; Replaces 430895A1

1шт.

18

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

2-1/2 x 3 x 1

4шт.

20

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

1-3/4 x 2-1/4 x 1

2шт.

21

417854A1

CYLINDER ASSY.

89 ID x 395 mm Stroke; Lift; See Figure 08-11

2шт.

21

87361535R

REMAN-HYD CYLINDER

750K SERIES 3 CRAWLER TIER 2 (12/06-), Reman for New PN 417854A1

2шт.

21

87361535C

CORE-HYD CYLINDER

Return Number

2шт.

22

412357A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 147.8mm Stroke

89 ID x 148 mm Stroke; Tilt; See Figure 08-12

1шт.

22

412357A1R

REMAN-HYD CYLINDER

750K SERIES 3 CRAWLER TIER 2 (12/06-)

1шт.

22

412357A1C

CORE-HYD CYLINDER

Return Number

1шт.

23

87615546

CYLINDER ASSY.

Replaces 412359A1; 89 ID x 396 mm Stroke; Angle; See Figure 08-13; No Longer Available, Order 84135900 Angle Cylinder Assy., Ref 23A

2шт.

23a

84135900

HYDRAULIC CYLINDER,44.4mm Rod, 395.5mm Stroke

CYLINDER ASSY., 89 ID x 396 mm Stroke; Angle; Not Illustrated; See Figure 08-13A

2шт.

23a

84135900R

REMAN-HYD CYLINDER

750K, Series 3, w/ Tier 2 Engine

2шт.

23a

84135900C

CORE-HYD CYLINDER

Return Number

2шт.

24

345410A1

GROOVED PIN

Lift Cylinder

2шт.

25

414988A1

SHIM

LGP Models; If Used

10шт.

26

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

Use Loctite No. 243; LGP Models

4шт.

27

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

28

414987A1

WEAR PLATE

2шт.

29

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

Use Loctite No. 243

4шт.

30

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.
