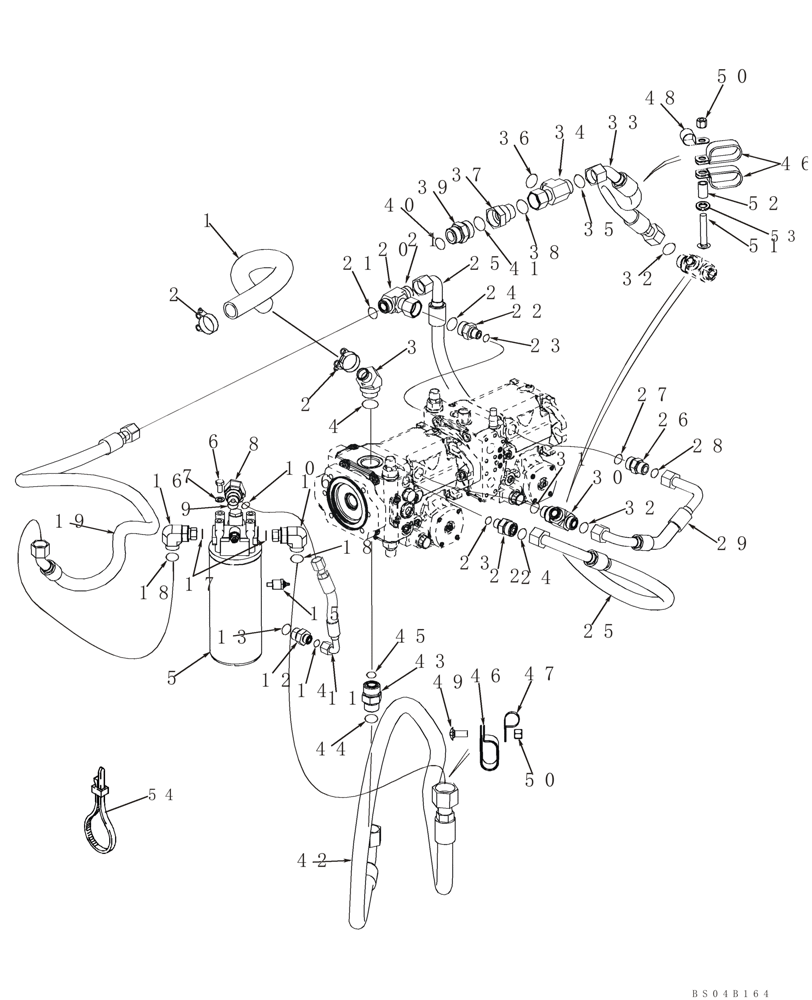

Запчасти Case 750K (06-02) - HYDROSTATICS - PUMP, TANDEM SUPPLY AND RETURN TO FILTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
87351690
HOSE,38.10 mm ID x 849.00 mm, SAE 100R4
849 mm (33-7/16 in) Length Hose; Supply From Tank, Replaces 429371A1 (900 mm (35-7/16 in)
1шт.
2
214-2130
CLAMP,#30, 1.81"-2.06", T-Bolt
2шт.
3
217-327
FITTING,45 Degree Elbow, 1-1/2" Hose Barb x 1-5/8" - 12 Male ORB
Incl. Ref 4
1шт.
4
237-6020
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
1шт.
5
418237A1
FILTER ASSY
See Figure 06-09
1шт.
6
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
4шт.
7
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
4шт.
8
201-327
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB
Incl. Ref 9, 10
1шт.
10
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss End
1шт.
11
435014A1
HOSE ASSY.
252 mm (9-15/16 in); Filter To Tank; Charge Filter Bypass
1шт.
12
201-128
HYD CONNECTOR,13/16"-16 ORFS x 1 1/16"-12 ORB
Incl. Ref 13, 14
1шт.
14
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss End
1шт.
16
201-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Incl. Ref 17, 18
2шт.
17
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End
1шт.
18
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss End
1шт.
19
430511A1
HOSE ASSY.
1800 mm (70-7/8 in); Filter Outlet To Hydrostatic Pump
1шт.
87313817
CONDUIT
1-1/4 ID, Used On 430511A1 Hose, If Used
1шт.
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP Used On 87313817 Sleeve If Used
2шт.
20
201-419
TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br
Incl. Ref 21
1шт.
21
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
2шт.
22
201-141
HYD CONNECTOR,1 3/16"-12 ORFS x 3/4"-16 ORB
Incl. Ref 23, 24
2шт.
23
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end
1шт.
24
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End
1шт.
25
430512A2
HOSE ASSY.
980 mm (38-5/8 in); Filter Outlet Crossover
1шт.
26
201-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Includes Ref 27, 28
1шт.
27
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss End
1шт.
28
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End
1шт.
29
429711A1
HOSE ASSY.
335 mm (13-1/4 in); Case Drain
1шт.
30
201-428
TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB
Incl. Ref 31, 32
1шт.
31
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss End
1шт.
32
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End
2шт.
33
429712A1
HOSE ASSY.
975 mm (38-7/16 in); Case Drain To Tank
1шт.
34
447886A1
TEE
Incl. Ref 35, 36
1шт.
35
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal
1шт.
37
201-147
REDUCER,1 3/16"-12 Male x 1 7/16"-12 Fem, ORFS
Incl. Ref 38
1шт.
38
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
39
86988878
VALVE, CHECK
1 ORFS x 1 ORB; To Tank; Incl. Ref 40, 41
1шт.
41
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
Face Seal End
1шт.
42
430510A1
HOSE ASSY.
1730 mm (68-1/8 in); Filter Inlet
1шт.
43
201-103
HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB
Includes Ref 44, 45
1шт.
44
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Boss End
1шт.
45
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
Face Seal End
1шт.
46
242999A1
CLAMP
Double Clamp
3шт.
47
515-25317
CLAMP,1 1/4", Insul, 1/2" Bolt
1шт.
48
515-25317
CLAMP,1 1/4", Insul, 1/2" Bolt
1шт.
49
811-12050
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8
1шт.
50
832-10412
NUT,M12 x 1.75, Cl 8
2шт.
51
811-12070
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8
1шт.
52
487704R1
SPACER,3/4" Tube x 1 3/16"
1шт.
53
896-15010
WASHER,11mm ID x 24mm OD x 3mm Thk
1шт.
54
87429171
STRAP
Brown, 203 mm (8 inch)
1шт.
54
87429172
STRAP
Red, 203 mm (8 inch)
2шт.
Выбрано товаров: 57
