Запчасти Case 750K (06-01) - MOUNTING - PUMP, HYDROSTATIC TANDEM AND DRIVESHAFT (06) - POWER TRAIN

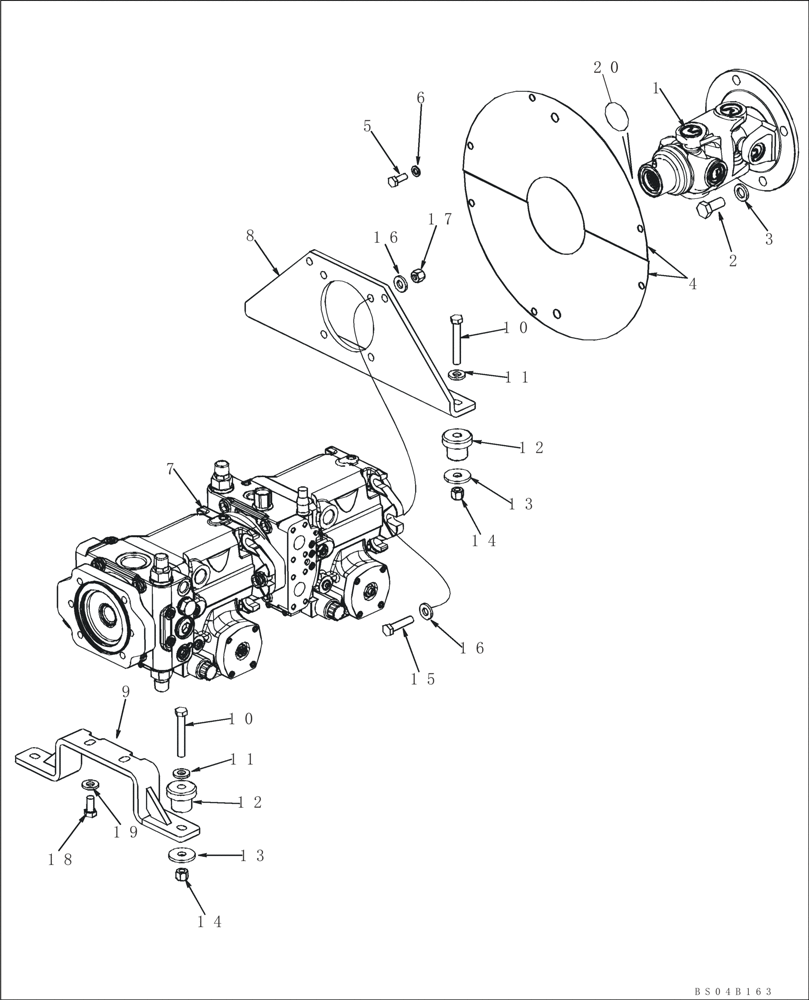

Схема запчастей Case 750K - (06-01) - MOUNTING - PUMP, HYDROSTATIC TANDEM AND DRIVESHAFT (06) - POWER TRAIN
12
13
10
2
10
7
4
5
16
9
16
1
17
19
11
3
8
12
15
20
bs04b163
6
18
11
14
13
14

Артикул

Название

Примечание

Количество

1

328712A2

FLEXIBLE DRIVE SHAFT

Driveshaft; Component Parts Not Serviced Separately; Order 87400942 Kit For Service

1шт.

87400942

UNIVERSAL JOINT

Driveshaft U-Joint; Incl. (4) 87280463 Snap rings, Plus A Cross Bearing Kit Which Is Not Serviced Separately that Includes (1) Spider, (4) Bearings, (4) Snap rings, (4) Lock Plates, (8) Bolts

1шт.

2

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

Use with Loctite 243

4шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

385750A1

COVER

Flywheel Housing

2шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

6шт.

6

892-11010

LOCK WASHER,M10

6шт.

7

401630A2

HYDROSTATIC PUMP

Tandem; Standard, Models Without PTO, See Figure 06-13

1шт.

7

401630A2R

REMAN-HYD PUMP

Reman For New PN 401630A2

1шт.

7

401630A2C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

7

84417898R

REMAN-HYDROSTAT PUMP

750K Series 2 Crawler (TIER 2), Tandem, Standard, Models Without PTO (1/05-), Reman for New PN 401630A2

1шт.

7

84417898C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

7a

87331813

PUMP

PUMP, Hydrostatic, Models With PTO, See Figure 06-14

1шт.

7a

87331813R

REMAN-HYDROSTAT PUMP

Reman Pump, Hydrostatic, Models With PTO

1шт.

7a

87331813C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

8

447840A1

BRACKET, SUPPORTING

Front Pump Support

1шт.

9

430920A1

BRACKET, SUPPORTING

Rear Pump Support

1шт.

10

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

12

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

Front Mount

4шт.

13

D25022

WASHER

4шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

15

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

17

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

18

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

20

L33673

OIL SEAL

Oil Seal

1шт.

Выбрано товаров: 28
