Запчасти Case 750K (04-21) - LAMPS, ROPS CANOPY (04) - ELECTRICAL SYSTEMS

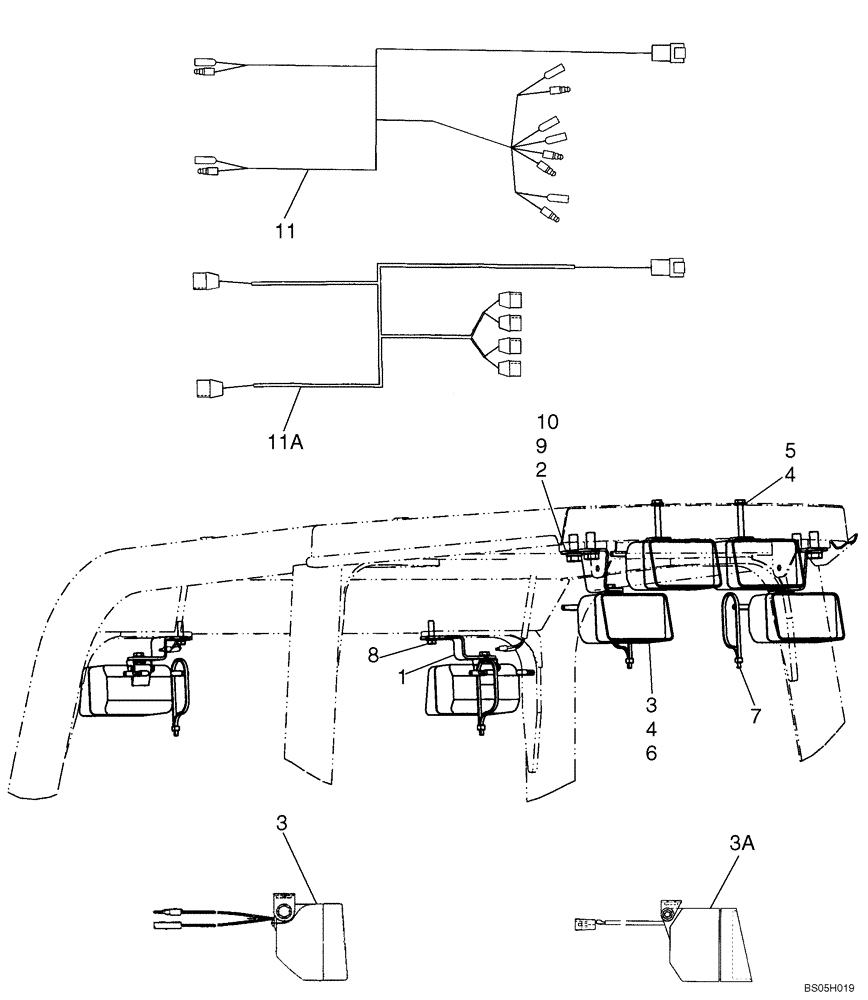

Схема запчастей Case 750K - (04-21) - LAMPS, ROPS CANOPY (04) - ELECTRICAL SYSTEMS
10
9
5
11
4
7
3
3
3a
4
2
6
11a
8
1

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

CANOPY WORK LIGHTS WITHOUT SWEEPS; Use Ref 1 - 10

1шт.

REF

INSTRUCTION

CANOPY WORK LIGHTS WITH SWEEPS; Use Ref 1 - 8

1шт.

1

445105A1

BRACKET

Light Mount

2шт.

2

87313873

BRACKET

Light Mount

2шт.

3

398847A3

WORK LAMP,Halogen, 12V, 55W, Clear

12V, 55W; Front and Rear Flood and Work Lamps; Incl. 1312210C2 Lamp and 276498A1 Lens; Two Wire Connector, Pin/Recepticle; Used With 87454920 Canopy Lamp Harness, Ref 11; If Used

6шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

276498A1

LENS

With Hardened Glass

1шт.

3a

87317577

LIGHT ASSY.

12V, 55W; Front and Rear Flood and Work Lamps; Incl. 1312210C2 Lamp; Single Wire Connector, Round Socket; Used With 87437571 Canopy Lamp Harness, Ref 11A; If Used

6шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

5

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

6

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

8

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

10

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

11

87454920

WIRE HARNESS

Canopy Lamps; Used With 398847A3 Lamps, Ref 3; If Used; Used With 2482146 Grommet 5/8 ID x 7/8 OD Groove

1шт.

11a

87437571

WIRE HARNESS

Canopy Lamps; Used With 87317577 Lamps, Ref 3A; If Used

1шт.

Выбрано товаров: 17
