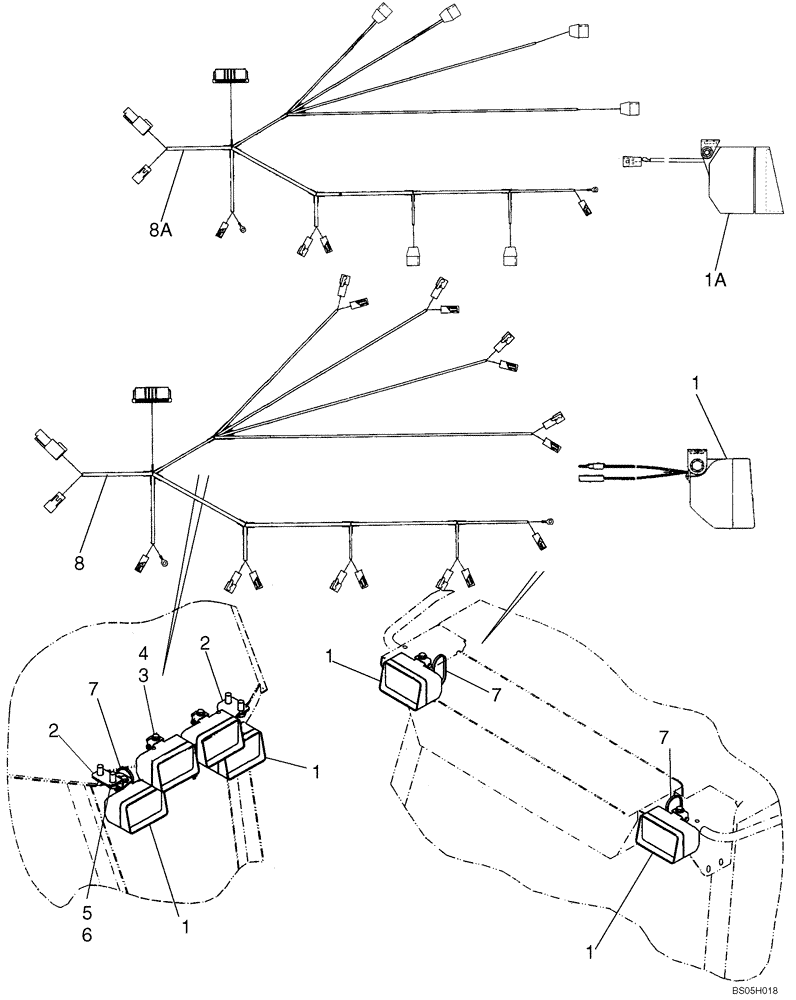

Запчасти Case 750K (04-20) - LAMPS, ROPS CAB (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

CAB WORK LIGHTS WITHOUT SWEEPS; Use Ref 1 - 7

1шт.

REF

INSTRUCTION

CAB WORK LIGHTS WITH SWEEPS; Use Ref 1 - 4, 7

1шт.

1

398847A3

WORK LAMP,Halogen, 12V, 55W, Clear

12V, 55W; Front and Rear Flood and Work Lamps; Incl. 1312210C2 Lamp and 276498A1 Lens; Two Wire Connector, Pin/Recepticle; Used With 87410145 Cab Lamp Harness, Ref 8; If Used

3-6шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

276498A1

LENS

With Hardened Glass

1шт.

1a

87317577

LIGHT ASSY.

12V, 55W; Front and Rear Flood and Work Lamps; Incl. 1312210C2 Lamp; Single Wire Connector, Round Socket; Used With 87438394 Cab Lamp Harness, Ref 8A; If Used

3-6шт.

2

87455059

BRACKET

Light Mount

2шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3-6шт.

4

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

Replaces 614-10020 M10 x 20 Bolt Used On Some Models

3-6шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

6

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

Replaces 627-16035 M16 x 35 Bolt Used On Some Models

4шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

8

87410145

WIRE HARNESS

Cab Lamps; Used With 398847A3 Lamps, Ref 1; If Used

1шт.

8a

87438394

WIRE HARNESS

Cab Lamps; Used With 87317577 Lamps, Ref 1A; If Used

1шт.
