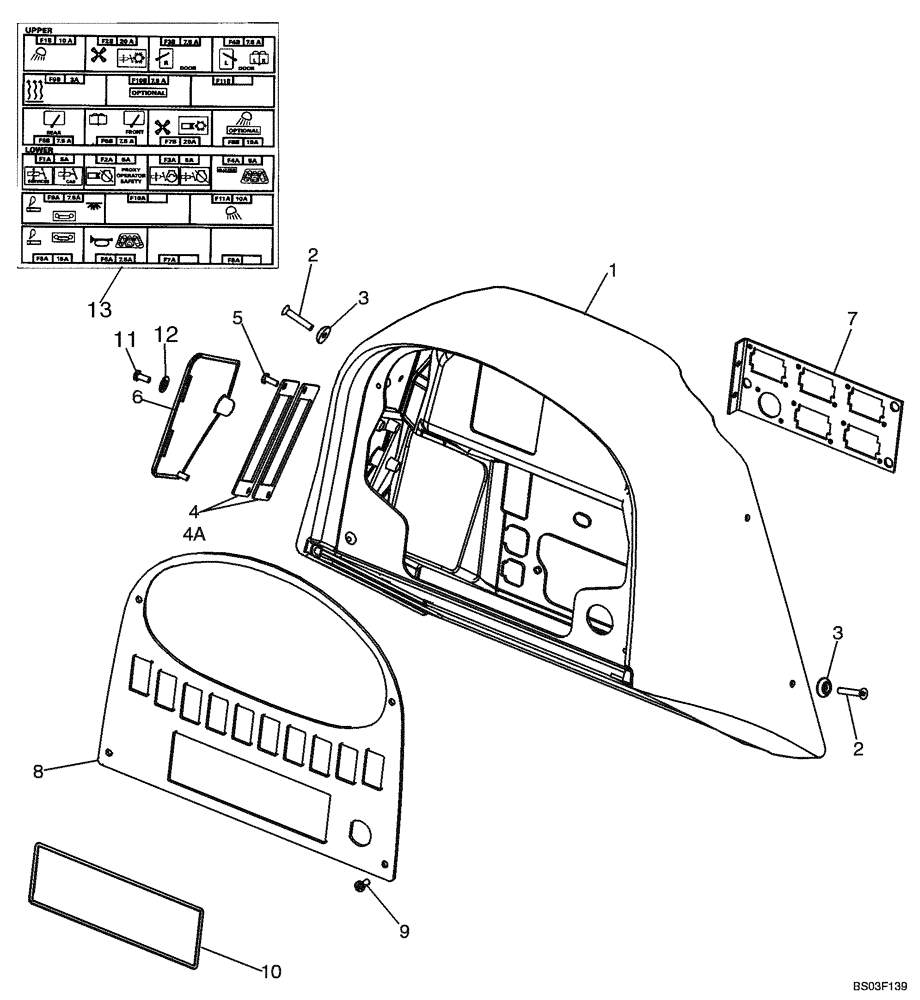

Запчасти Case 750K (04-18) - CONSOLE, FRONT - CAB (04) - ELECTRICAL SYSTEMS

1

86984891

CONSOLE

Front Console

1шт.

2

543-713

SCREW,Phil Flat Hd, M6 x 35, 4.8

4шт.

3

76067309

CUP WASHER

Nylon

4шт.

4

86989589

MOUNTING PARTS

Fuse Box

2шт.

4a

87416387

PROTECTIVE COVER

Inner, Weather Tight; Not Illustrated

2шт.

5

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

5шт.

6

86984895

PROTECTIVE COVER

Outer; Fuse Access

1шт.

7

86989588

PLATE

Harness Bulkhead Plate

1шт.

8

86984892

FRONT PLATE

Face Plate, Front Console

1шт.

9

540-712

SCREW,Cross Pan Hd, M5 x 12

2шт.

10

87416263

PROTECTIVE COVER

Radio

1шт.

11

540-712

SCREW,Cross Pan Hd, M5 x 12

1шт.

12

87428441

RETAINER

M5

1шт.

13

87439445

DECAL

Fuse Decal

1шт.
