Запчасти Case 750K (04-14) - HARNESS, FRONT CONSOLE AND SWITCHES - CAB (04) - ELECTRICAL SYSTEMS

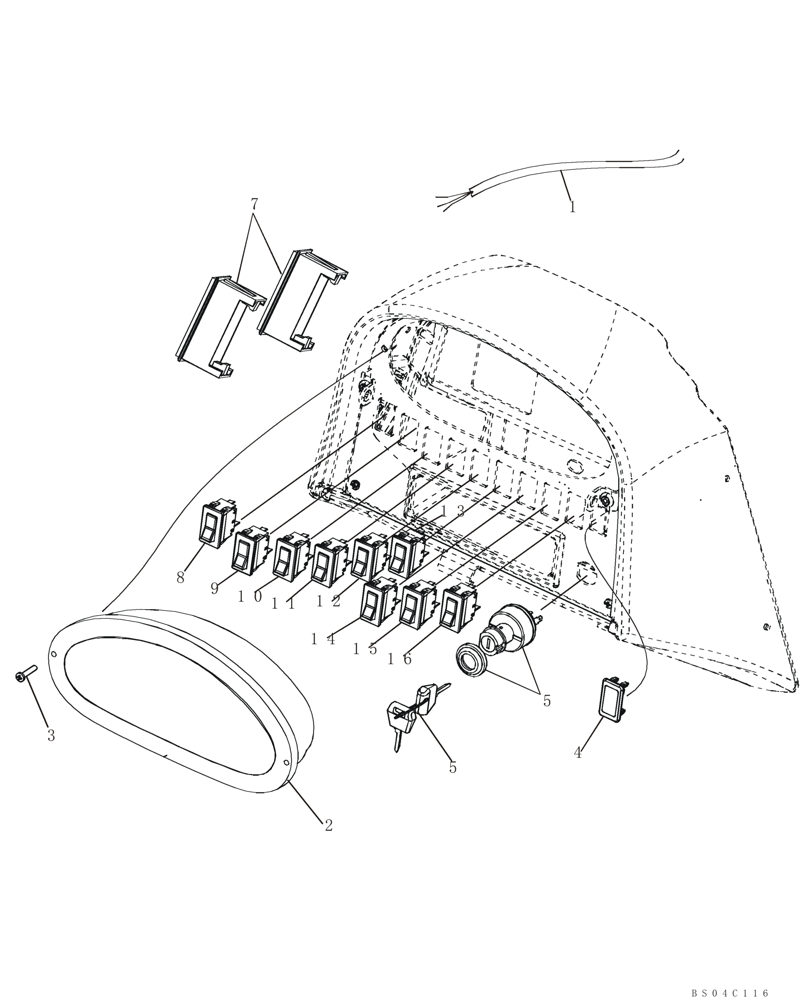

Схема запчастей Case 750K - (04-14) - HARNESS, FRONT CONSOLE AND SWITCHES - CAB (04) - ELECTRICAL SYSTEMS
16
1
15
13
14
10
7
bs04c116
9
8
5
12
11
3
2
5
4

Артикул

Название

Примечание

Количество

1

87441567

WIRE HARNESS

Front Console; Cab Models

1шт.

2

87454942

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Instrument Cluster, See Figure 04-19

1шт.

2

87454942R

REMAN-INSTR CLUSTER

1шт.

2

87454942C

CORE-CLUSTER, INSTR

Return Number

1шт.

3

87026656

SCREW,Phillips Drive, Pan HD, M5 x 25mm, Cl 4.8

2шт.

4

86000535

PLUG,1.427" x .62", Plastic

Switch Hole; If Used; Replaces 126844A1

1шт.

5

282775A1

IGNITION SWITCH

Includes Padded Keys 1964831C2

1шт.

7

76067216

COVER

Fuse Panel

2шт.

A149796

FUSE

3 Amp; Violet; Upper Fuse Box

1шт.

A149799

FUSE

7.5 Amp; Brown; Upper Fuse Box

5шт.

A149800

FUSE,10 Amp

10 Amp; Red; Upper Fuse Box

1шт.

A149802

FUSE

20 Amp; Yellow; Upper Fuse Box

2шт.

A149798

FUSE

5 Amp; Tan; Lower Fuse Box

4шт.

A149799

FUSE

7.5 Amp; Brown; Lower Fuse Box

2шт.

A149800

FUSE,10 Amp

10 Amp; Red; Lower Fuse Box

1шт.

A149801

FUSE,Lt Blue, 15 Amp

15 Amp; Light Blue; Lower Fuse Box

1шт.

8

87438286

LIGHT SWITCH

Rocker; Front Work Lamps

1шт.

9

133715A1

LIGHT SWITCH

Rocker; Rear Work Lamps

1шт.

10

87410552

WINDSHIELD WIPER SWI

Rocker; Front and Rear Windshield Wipers

1шт.

11

386788A1

WINDSHIELD WIPER SWI

Rocker; Rear Windshield Washers

1шт.

12

87410551

WINDSHIELD WIPER SWI

Rocker; Left-Hand and Right-Hand Door Window Wipers

1шт.

13

87411310

WINDSHIELD WASHER SW

Rocker; Left-Hand and Right-Hand Door Window Washers

1шт.

14

87410087

ROCKER SWITCH

Rocker; Momentary, Up/Down

1шт.

15

87410091

ROCKER SWITCH

Rocker; Momentary, Display

1шт.

16

386852A2

SWITCH

Rocker; Horn

1шт.

Выбрано товаров: 25
