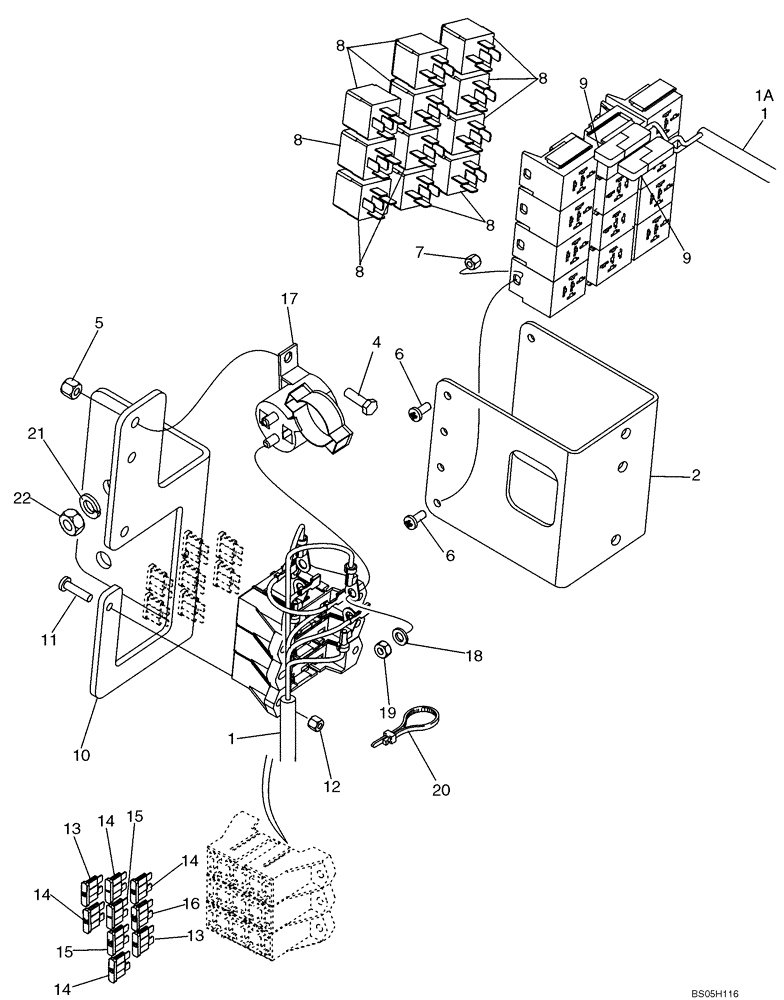

Запчасти Case 750K (04-08) - HARNESS, ENGINE - FUSES AND RELAYS (04) - ELECTRICAL SYSTEMS

1

87438048

WIRE HARNESS

Main, No Longer Available, For Service Order 87319008 Main Harness and 87318846 Windshield and Door Washer Harness (Models With Cab)

1шт.

1a

87319008

WIRE HARNESS

Main, Replaces 87438048

1шт.

2

437231A1

BRACKET, SUPPORTING

Relay Mounting

1шт.

4

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

5

832-10406

NUT,M6 x 1, Cl 8

2шт.

6

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

4шт.

7

832-10405

NUT,M5 x .8, Cl 8

4шт.

8

87436836

RELAY,12V, 40 Amp

40 amp, 12 V, Heavy Duty

8шт.

9

L71879

DIODE ELEMENT,400V, 3A

2шт.

10

437230A1

BRACKET, SUPPORTING

Fuse Mounting

1шт.

11

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

12

832-10405

NUT,M5 x .8, Cl 8

2шт.

13

A149800

FUSE,10 Amp

10 amp, Red; Ignition Switch and Relay, Serial Range: Power-Solenoids

2шт.

14

A149804

FUSE

30 amp, Light Green

2шт.

15

A187975

FUSE

1 amp, Smoke Color; Sensors and Microcontroller

2шт.

16

A149803

FUSE,25 Amp

25 amp, Clear; Microcontroller

1шт.

17

120399A1

RELAY

100 amp; Starter and Injection Pump Relays

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

21

892-11010

LOCK WASHER,M10

2шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
