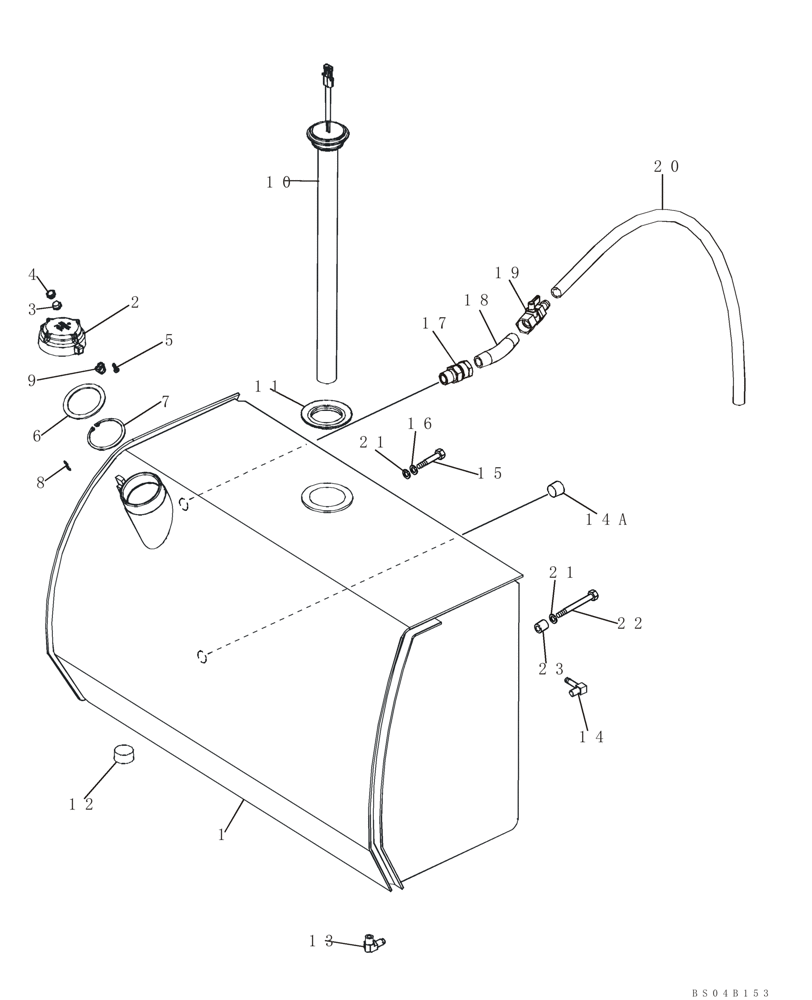

Запчасти Case 750K (03-04) - FUEL TANK (03) - FUEL SYSTEM

405743A4

TANK

Complete; Incl. Ref 1 - 14A, Replaces 405743A3

1шт.

1

405744A3

TANK

Unpainted; Replaces 405744A32

1шт.

2

R57981

FILLER CAP

Incl. Ref 3 - 5

1шт.

3

A50096

VALVE

Relief; Use With Loctite 592

1шт.

4

R57888

FILTER

Use With Loctite 592

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

Use with Loctite No. 242

1шт.

6

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

Rubber

1шт.

7

103-21300

SNAP RING,3.00", Int, #300

1шт.

8

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

9

R48634

FASTENER

Hook

1шт.

10

326277A2

SENSOR

Fuel Level, No Longer Used On This Sensor For Service Order Ref. 10A

1шт.

10a

87497048

SENSOR

Fuel Level, Longer Sensor, Not Illustrated

1шт.

11

255095A1

GROMMET

1шт.

12

221-37

PLUG

Drain, 1-1/4 PT; Use With Loctite 592

1шт.

13

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

14

87016896

FITTING,90 Degree, 3/8" Hose x 1/4" NPTF, Barbed

Brass, Replaces 217-132

1шт.

14a

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

1шт.

15

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

1шт.

16

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

17

218-903

HYD CONNECTOR,1/2" NPT x 1/2"

1шт.

18

87415653

PIPE

Bent

1шт.

19

86984713

SHUT-OFF VALVE

1шт.

20

87413240

HOSE ASSY.

Drain

1шт.

21

D44330

SHIM,.031" Thk

Washer

4шт.

22

814-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 8.8

3шт.

23

87440363

SPACER,17.5mm ID x 34.9mm OD x 29mm L

Spacer

3шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

B17577

LOCTITE

No. 242, 6 ml

1шт.
