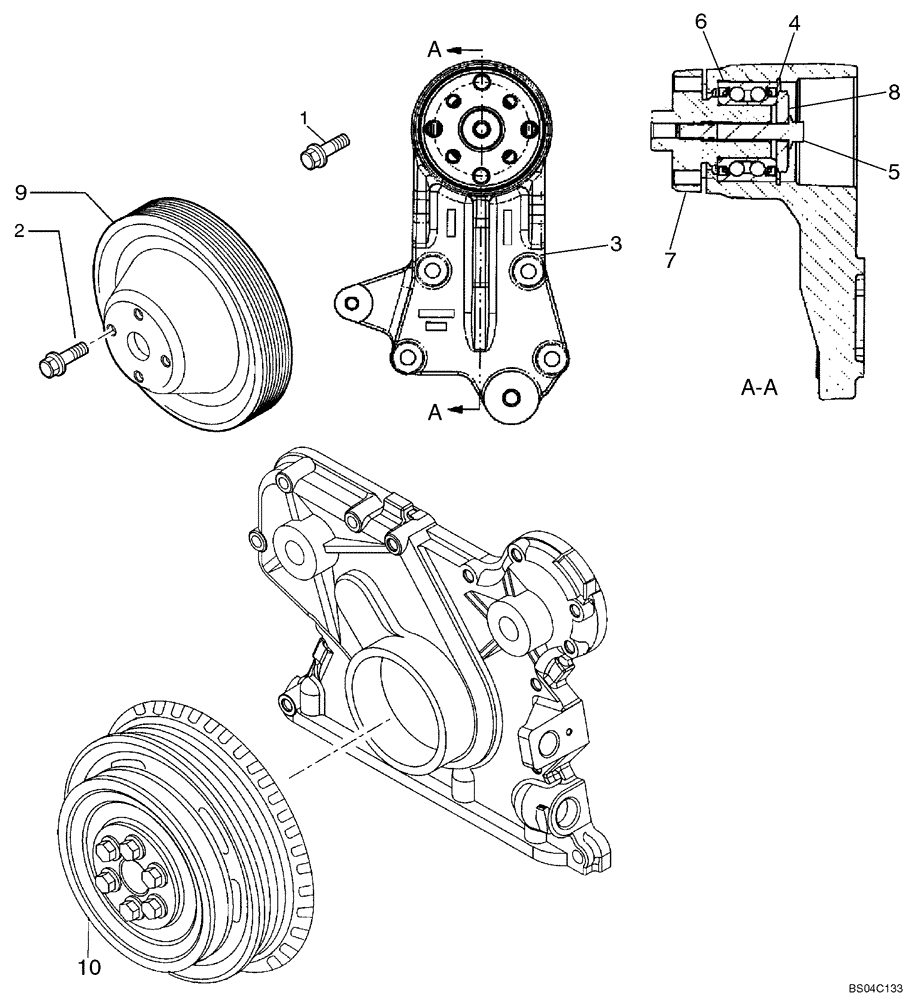

1
4899053
SCREW,Hex Flg, M8 x 45
Flange, M8 x 45
4шт.
2
2855283
BOLT
Stud Bolt, M10 x 25, Replaces 4899032
4шт.
3
2853210
BRACKET
Incl. Ref 4 - 8
1шт.
4
2852171
SNAP RING
1шт.
5
2852172
BOLT,Flng, M10 x 1.5 x 70mm
1шт.
6
4892732
BALL BEARING,34mm ID x 64mm OD x 37mm W
1шт.
7
4892426
HUB
1шт.
8
4890732
RETAINER,11.50mm ID x 52mm OD x 7mm
1шт.
9
2853233
PULLEY,178mm OD
PULLEY
1шт.
10
REF
INSTRUCTION
CRANKSHAFT PULLEY; See Figure 02-26
1шт.
