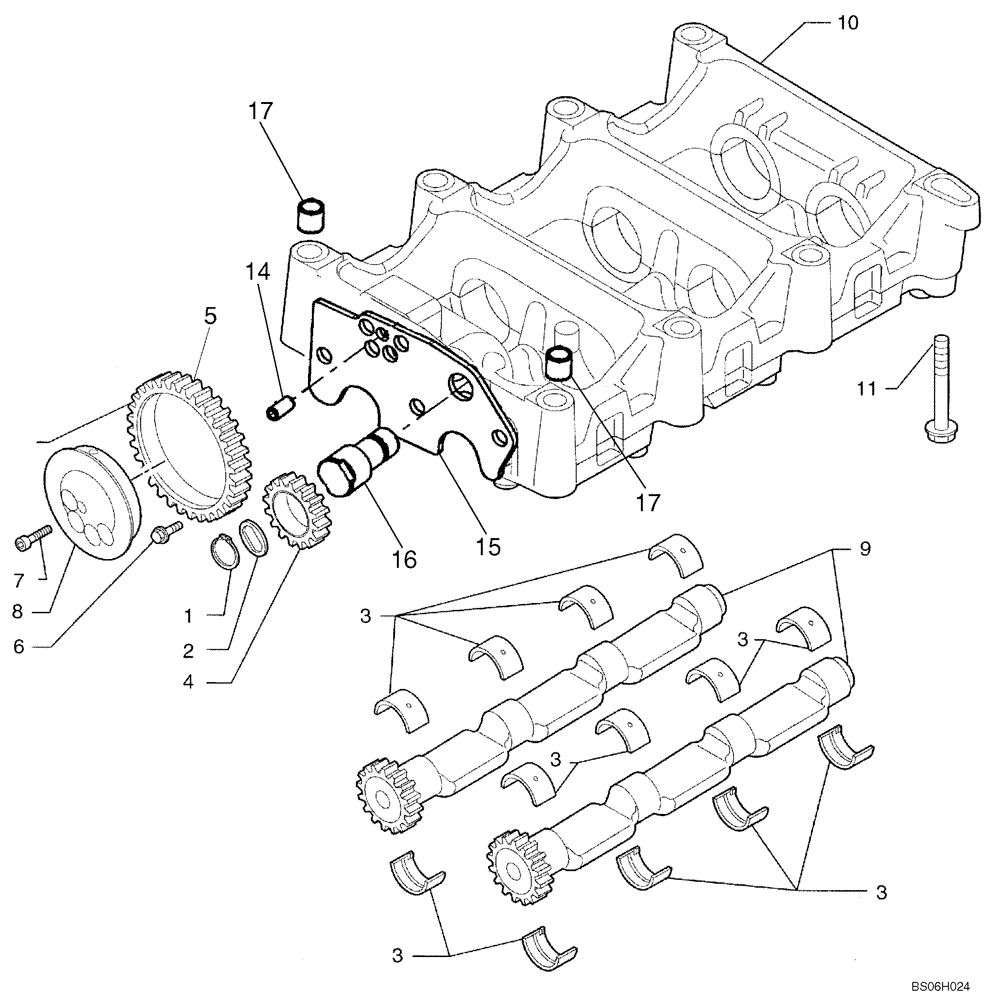

Запчасти Case 750K (02-27) - DYNAMIC BALANCER, GEARS & SHAFTS (02) - ENGINE

2853225

HOUSING

Assembly, Incl. Ref 1 - 10; Replaces 2853225; Used on Some Models

1шт.

1

4897125

SNAP RING,Ext, M23

1шт.

2

2855753

THRUST PLATE

Plate, Thrust; Used W/ 2855743 Balancer Assy

1шт.

2

4897123

THRUST BEARING

Used W/ 2853225 Balancer Assy.

1шт.

3

8093883

SET OF STD MAIN BRGS

Replaces 4897071

16шт.

3

2855747

BEARING SET

Bushing; Alternate Part to 8093883, 4897071

16шт.

4

4897048

IDLER GEAR

1шт.

4

2855750

IDLER GEAR

Gear Assembly; Alternate, Serial Range: Part-4897048

1шт.

5

4896947

IDLER GEAR

1шт.

5

2855748

IDLER GEAR

Gear Assembly; Alternate, Serial Range: Part-4896947

1шт.

6

4895586

SCREW,Hex, Flg Hd, M8 x 16

3шт.

7

2830433

HEX SOC SCREW

(4) Used with 2830953 Balancer Assy

5-4шт.

8

2831031

IDLE SHAFT

1шт.

9

2831354

SHAFT

Shaft Assembly; Used W/ 2855743 Balancer Assy.

2шт.

9

2853226

SHAFT ASSY.

Used W/ 2853225 Balancer Assy.

2шт.

2831300

HOUSING

Assy; Incl. Ref 10, Ref14 -17; Used W/ 2853225 Balancer Assy.

1шт.

10

NSS

NOT SOLD SEPARAT

Housing

1шт.

11

4899109

SCREW,Hex, M10 x 1.5 x 80

Flange

6-7шт.

11

4897934

SCREW,Hex, Flg Hd, M10 x 100

1шт.

14

2831305

DOWEL,M8 x 17 L

1шт.

15

2855746

THRUST PLATE

Plate, Thrust; Used W/ 2855743 Balancer Assy.

1шт.

15

2830905

THRUST PLATE

Used W/ 2853225 Balancer Assy.

1шт.

16

2830948

IDLE SHAFT

1шт.

17

4899027

DOWEL,M14.05 x 14 L

Ring

2шт.
