Запчасти Case 750K (02-17) - CYLINDER HEAD (02) - ENGINE

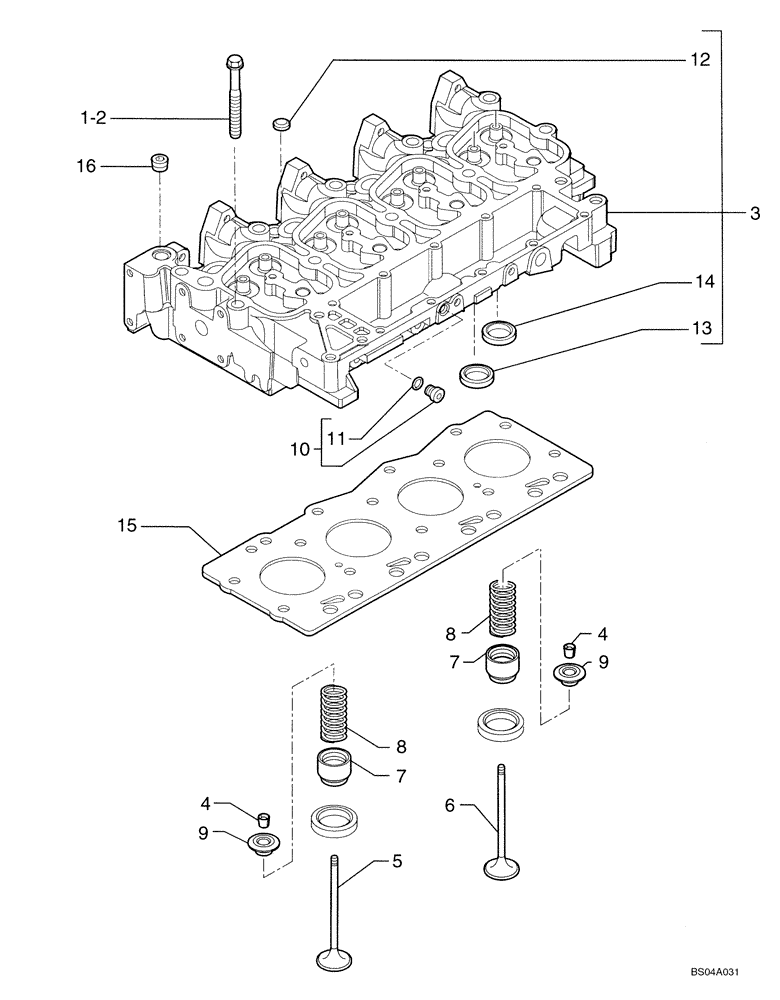

Схема запчастей Case 750K - (02-17) - CYLINDER HEAD (02) - ENGINE
16
13
4
15
5
7
9
8
9
1
7
4
6
2
3
8
12
11
14
10

Артикул

Название

Примечание

Количество

1

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

4шт.

2

4892859

BOLT,Flng, M12 x 1.75 x 143mm

10шт.

3

4895790

CYLINDER HEAD

Incl. Ref 12 - 14

1шт.

3

87536180

CYLINDER HEAD

- ASSY Include Ref. 3,4,5,6,7,8,9,10

1шт.

3

87536180R

REMAN-CYLINDER HEAD

- ASSY Include Ref. 3,4,5,6,7,8,9,10

1шт.

3

87536180C

CORE-CYLINDER HEAD

Return Number

1шт.

4

4895183

COLLET

16шт.

5

4895188

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

6

4895187

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

7

4895347

SEAL

8шт.

8

4895215

VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL

8шт.

9

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

8шт.

10

4899009

PLUG,M10 x1

Incl. Ref 11

1шт.

11

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

12

4895179

EXPANSION PLUG,M20.93

3шт.

13

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

4шт.

14

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

4шт.

15

2830919

CYLINDER HEAD GASKET,1.4mm Thk

1шт.

15

2830920

CYLINDER HEAD GASKET,1.15mm Thk

1шт.

16

4895078

PIPE PLUG,1/2"-14

5шт.

Выбрано товаров: 20
