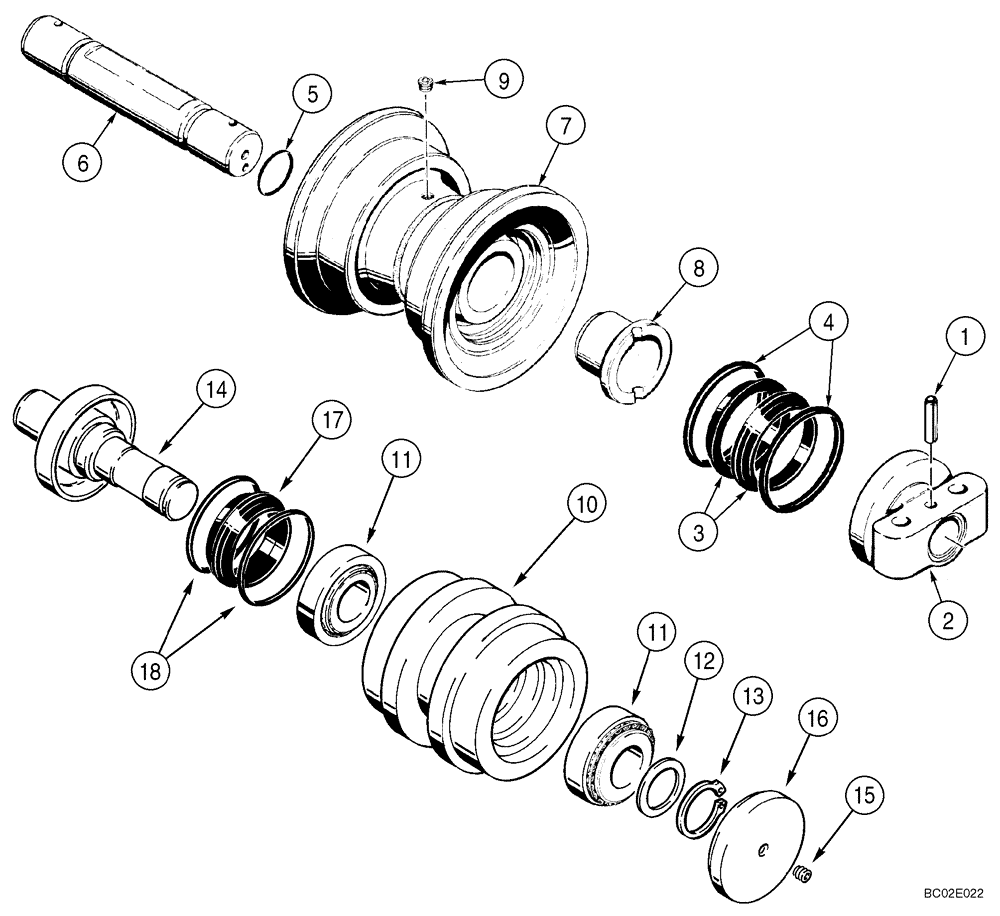

Запчасти Case 750K (05-07) - TRACK ROLLER (11) - TRACKS/STEERING

419375A1

ROLLER ASSY.

Incl. Ref 1 - 9

12шт.

1

R33563

ROLL PIN

Roll

2шт.

2

427026A1

BRACKET

2шт.

S113075

SEAL

Incl. Ref 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Seal

2шт.

4

N6846

O-RING,75.7mm ID x 9.5mm Width

Face Seal

2шт.

5

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

6

R33561

SHAFT

1шт.

7

NSS

NOT SOLD SEPARAT

Hub

1шт.

8

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

2шт.

9

R33557

PLUG

1шт.

REF

INSTRUCTION

ROLLER CARRIER ASSEMBLY

1шт.

419373A1

ROLLER, TRACK

Carrier; Incl. Ref 10 - 18; Service As A Complete Assembly

2шт.

10

NSS

NOT SOLD SEPARAT

Hub

1шт.

11

3142394R91

TAPERED BEARING

2шт.

12

198945A1

SPACER

1шт.

13

800-5140

SNAP RING,M40, Ext, Hvy

1шт.

14

198946A1

SHAFT ASSY.

1шт.

15

R33557

PLUG

1шт.

16

NSS

NOT SOLD SEPARAT

Cover, Carrier Roller End

1шт.

R33607

SEAL

Face; Incl. Ref 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

Seal

2шт.

18

N6847

O-RING,75mm ID x 8mm Width

2шт.
