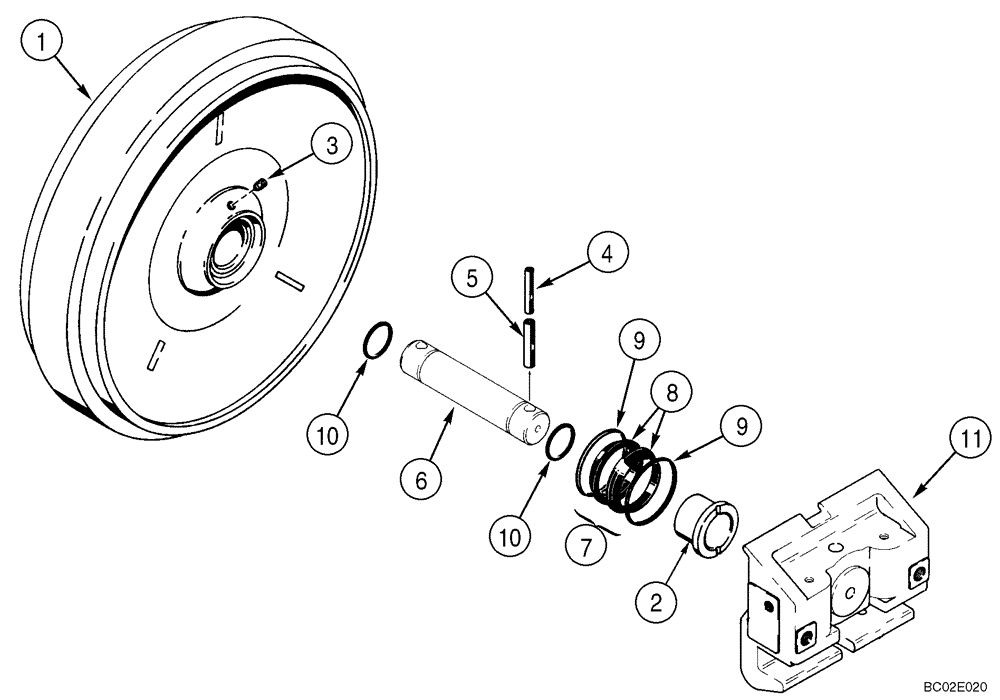

Запчасти Case 750K (05-06) - TRACK IDLER (11) - TRACKS/STEERING

87353998

IDLER, FRONT; Incl. Ref 1 - 11; Replaces 419395A1; Not Available As An Assembly, Order Components; Used In Production, For Service Order 103384A2 Idler/A

2шт.

103384A2

FRONT IDLER

Incl. Ref 1 - 11

2шт.

1

NSS

NOT SOLD SEPARAT

Hub; Incl. Ref 2

1шт.

2

103391A1

BUSHING,60.26mm ID x 68mm OD x 46mm L

2шт.

3

R33557

PLUG

1шт.

4

838-51090

PIN,M10 x 90, Coiled

2шт.

5

838-51690

LOCK PIN,M16 x 90, Slotted

2шт.

6

103390A1

SHAFT

1шт.

7

S116825

SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk

Seal; Incl. Ref 8, 9

2шт.

8

NSS

NOT SOLD SEPARAT

Seal; Order S116825

2шт.

9

NSS

NOT SOLD SEPARAT

O-Ring; Face Seal

2шт.

10

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

11

419779A1

BRACKET

2шт.
