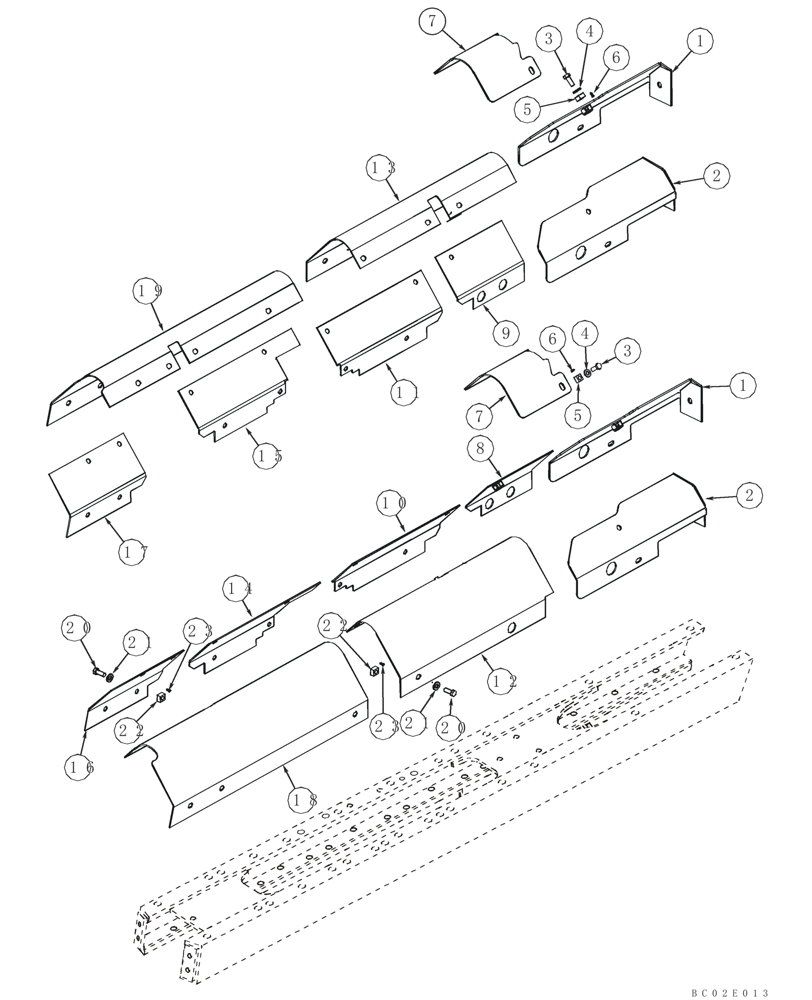

Запчасти Case 750K (05-02A) - FRAME, TRACK - COVERS (11) - TRACKS/STEERING

REF

INSTRUCTION

Larger Cutouts Allowing 87565113 Track Mount Spacer To Be Used Between Main Frame and Track Frame; See Fig 09-08, Ref 36

1шт.

87587531

Kit, Track Covers; Incl. 1, 2, 7 - 19

1шт.

1

435817A1

COVER ASSY

Idler; Left-Hand

2шт.

2

435818A1

COVER ASSY

Idler; Right-Hand

2шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

5

129-857

SQUARE NUT,Sq, 1/2"-13

4шт.

6

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

7

436969A1

COVER ASSY

Idler

2шт.

8

87587378

COVER ASSY

Cover Assembly; Right-Hand; Inner

1шт.

9

87587377

COVER ASSY

Cover Assembly; Left-Hand; Inner

1шт.

10

87587380

COVER ASSY

Cover Assembly; Right-Hand; Inner

1шт.

11

87587379

COVER ASSY

Cover Assembly; Left-Hand; Inner

1шт.

12

87587397

COVER ASSY

Cover Assembly; Right-Hand; Outer

1шт.

13

87587398

COVER ASSY

Cover Assembly; Left-Hand; Outer

1шт.

14

87587382

COVER ASSY

Cover Assembly; Right-Hand; Inner

1шт.

15

87587381

COVER ASSY

Cover Assembly; Left-Hand; Inner

1шт.

16

87582605

COVER ASSY

Cover Assembly; Right-Hand; Inner

1шт.

17

87582604

COVER ASSY

Cover Assembly; Left-Hand; Inner

1шт.

18

87587399

COVER ASSY

Cover Assembly; Right-Hand; Outer

1шт.

19

87587400

COVER ASSY

Cover Assembly; Left-Hand; Outer

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

44шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

44шт.

22

129-857

SQUARE NUT,Sq, 1/2"-13

40шт.

23

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

40шт.
