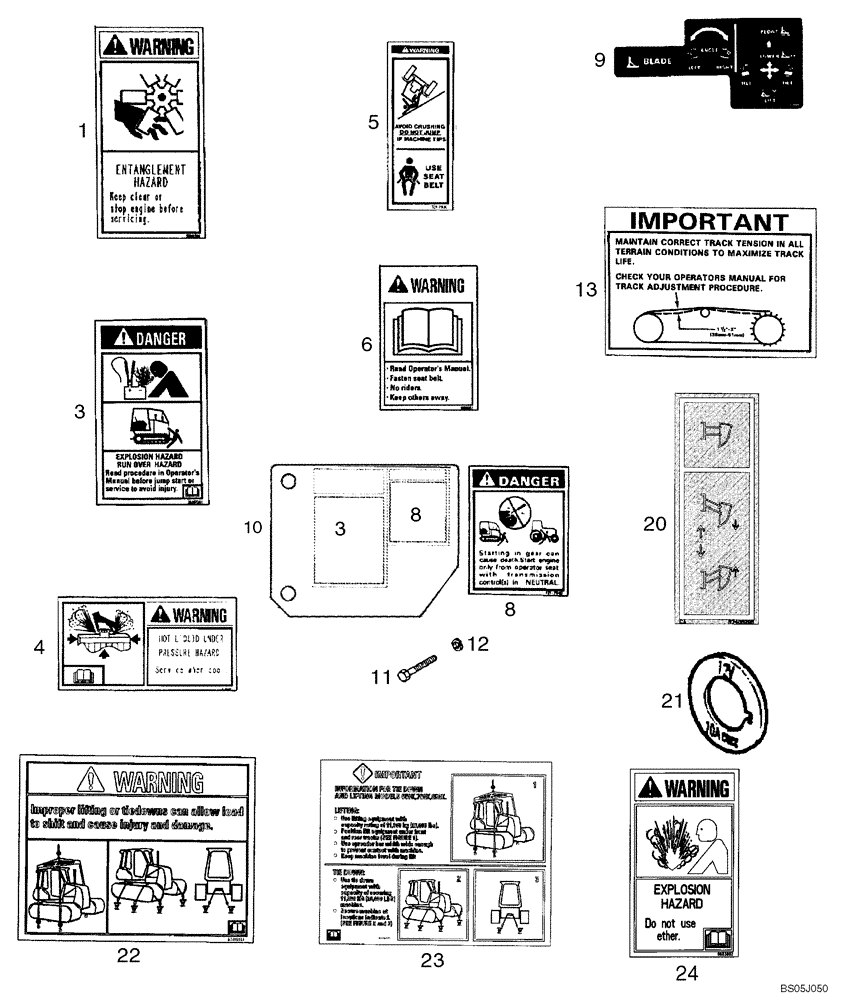

Запчасти Case 750K (09-52) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS

1

334034A1

WARNING DECAL

Entanglement Hazard

2шт.

3

389736A1

DECAL

Danger; Jump Start, Battery

2шт.

4

389741A1

DECAL

Warning; Radiator Cap

1шт.

5

124271A1

DECAL

Warning; Do Not Jump

1шт.

6

87352602

DECAL

Warning; Read the Operator's Manual; Replaces 334000A2

1шт.

8

124281A1

DECAL

Danger; Engine Start Warning

1шт.

9

87421171

DECAL

Dozer Blade Control Pattern

1шт.

10

87451954

LARGE PLATE

PLATE, LARGE Decal Mounting, Used With Ref 3, 8, 11, 12

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Replaces M12 x 25 614-12025 Bolt Used On Some Models

2шт.

12

892-11010

LOCK WASHER,M10

Replaces M12 892-11012 lock washer used on some models

2шт.

13

87355182

DECAL

Important; Track Tension; Replaces 87421173

1шт.

20

87408298

DECAL

Ripper Control Pattern

1шт.

21

76067229

DECAL

At 12V Plug Receptacle; Cab Models

1шт.

22

NSS

NOT SOLD SEPARAT

North American Decal

1шт.

23

NSS

NOT SOLD SEPARAT

North American Decal

1шт.

24

8603094

WARNING DECAL

Explosion Hazard, Do Not Use Ether

1шт.
