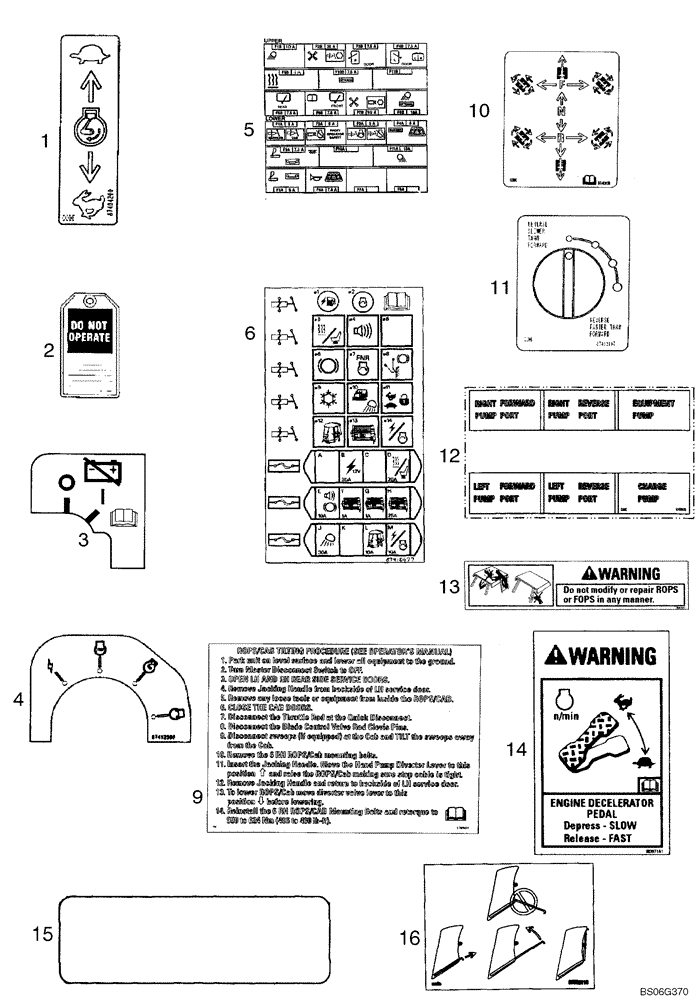

Запчасти Case 750K (09-51) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS

1

87422188

DECAL,16.5mm x 55mm H

Throttle

1шт.

2

321-4614

TAG

Do Not Operate Tag

1шт.

3

379422A1

DECAL

Master Disconnect Switch

1шт.

4

87412595

DECAL

Ignition Switch

1шт.

5

87415509

DECAL

Fuse/Relays, In Cab/Canopy Assembly

1шт.

6

87441773

DECAL

Fuse/Relays

1шт.

9

87355190

DECAL

Canopy/Cab Tilting Procedure; Replaces 87421181

1шт.

10

87422184

DECAL,57mm x 69mm H

Forward/Neutral/Reverse

1шт.

11

87421179

DECAL

Reverse Controller

1шт.

12

87421177

DECAL

Diagnostics

1шт.

13

87454610

DECAL

Warning, Do Not Modify or Repair ROPS or FOPS In Any Manner; Replaces 383972A1

1шт.

14

383971A1

DECAL

Warning, Engine Decelerator Pedal

1шт.

15

449842A1

REFLECTOR,160mm x 50.8mm H - Red

Reflector, Rectangular; 50.8 (2 in) x 160 mm (6-5/16 in)

2шт.

16

87550110

DECAL

Console Lockup Kit Instruction 50.0 mm x 66.0 mm

1шт.
