(09-36) - CAB - HEATER AND CONTROLS

Запчасти Case 750K (09-36) - CAB - HEATER AND CONTROLS (09) - CHASSIS/ATTACHMENTS

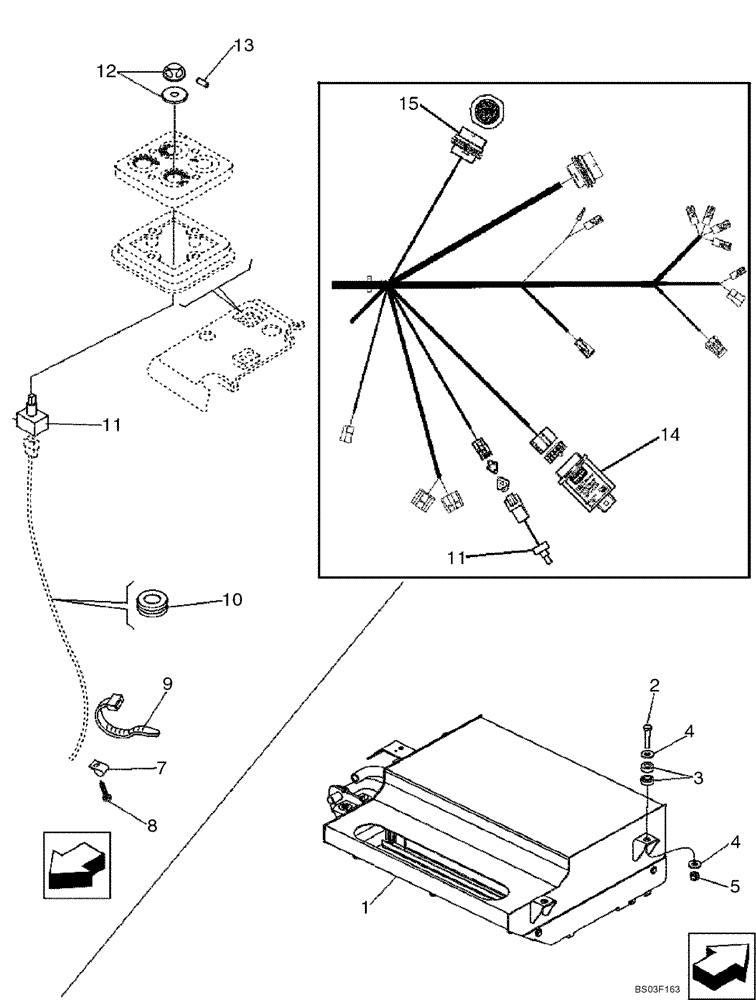

Схема запчастей Case 750K - (09-36) - CAB - HEATER AND CONTROLS (09) - CHASSIS/ATTACHMENTS
4
4
2
15
5
9
13
1
11
11
12
3
14
10
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87400678

HEATER ASSY.

Includes Blower; See Figure 09-37

1шт.

2

16040824

SCREW,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

M10 x 40

4шт.

3

76067945

PAD

Mount

8шт.

4

76067743

WASHER,M10

4шт.

5

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

6

76067770

SPACER

Not Illustrated

4шт.

7

71485276

SPRING NUT

Nut

1шт.

8

15688001

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 13mm

1шт.

9

71404503

HOSE CLAMP,69.6mm - 77mm

2шт.

10

76045509

GROMMET

Grommet

2шт.

11

87423841

POTENTIOMETER

Heat Temperature Switch, Replaces 87414787, Integral Part of 87410122 Cab Main Harness

1шт.

12

76043653

KNOB

Heat Temperature

1шт.

13

13795820

INSERT

M4 x 14 Dowel Pin

1шт.

14

87596035

MODULE

CONTROL MODULE; Water; Integral Part of 87410122 Cab Main Harness; Replaces 87423844

1шт.

15

87423857

CONNECTOR,ELECTRIC

Integral Part of 87410122 Cab Main Harness

1шт.
