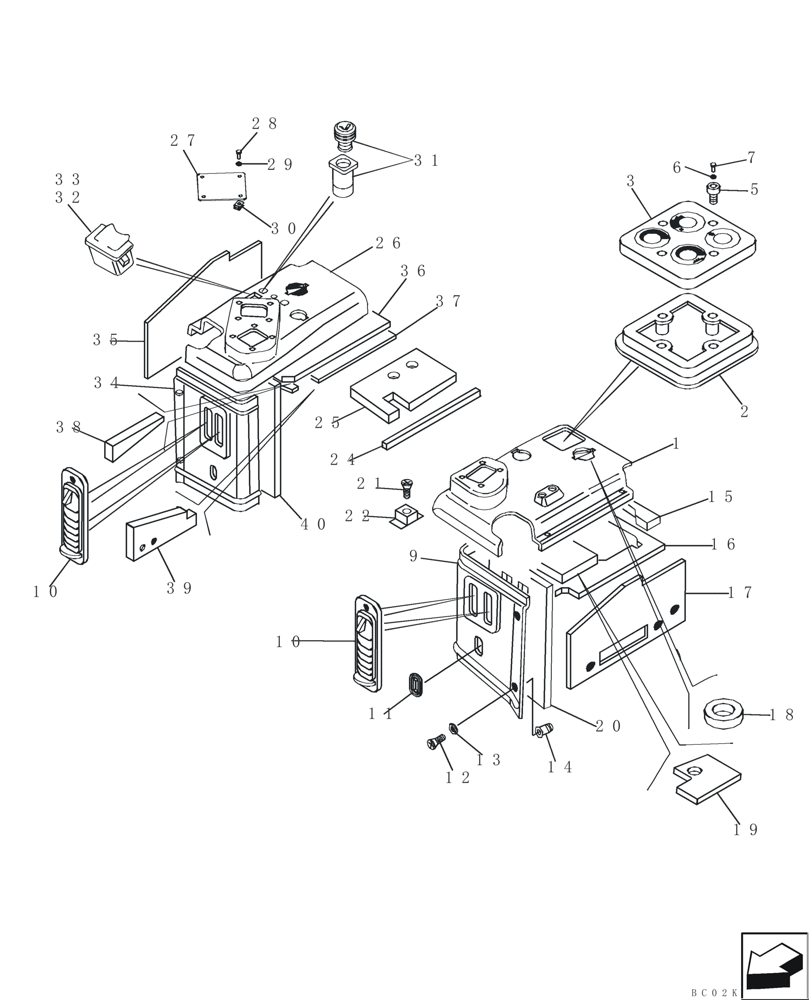

Запчасти Case 750K (09-29) - CAB - CONSOLES, SIDE (09) - CHASSIS/ATTACHMENTS

1

87400697

COVER

Console, Upper Left-Hand Side

1шт.

2

76079000

SUPPORT

1шт.

3

76078245

PLATE

Control; Heat and Air Conditioning

1шт.

5

76043560

THREADED INSERT,M4

4шт.

6

14496209

WASHER

4 mm

4шт.

7

13772917

SCREW,M4 x 35mm

M4 x 35

4шт.

9

87400695

COVER

Console, Lower Front; Left-Hand Side

1шт.

10

76079036

VENT

Louver

4шт.

11

76067249

SHIELD

Seal, Lockout/Parking Brake Levers

2шт.

12

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

8шт.

13

79076208

WASHER

Nylon, Black

8шт.

14

15629711

THREADED INSERT,Flat, M6 OD x 15mm L

M6 X 9.5

8шт.

15

87400684

TRIM PANEL

Upper Left

1шт.

16

87400683

TRIM PANEL

Upper Left

1шт.

17

87400687

TRIM PANEL

Left-Hand Side

1шт.

18

76079012

FOAM INSULATION

1шт.

19

76079008

FOAM INSULATION

Upper LH

1шт.

20

76067326

INSULATING PANEL

Lower Front; LH Side

1шт.

21

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

4шт.

22

76047274

NUT,M6 x 1

4шт.

24

76067665

SEAL

3шт.

25

87400682

TRIM PANEL

1шт.

26

87400698

COVER

Console, Upper Right-Hand Side

1шт.

27

87400766

PROTECTIVE COVER

Models Without Auxiliary Control Lever

1шт.

28

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

29

892-11006

LOCK WASHER,M6

4шт.

30

76047274

NUT,M6 x 1

4шт.

31

76088313

CIGARETTE LIGHTER

1шт.

32

76067826

COVER

Ashtray

1шт.

33

76043643

ASH TRAY

1шт.

34

87400696

COVER

Console, Lower Front; Right-Hand Side

1шт.

35

87400688

TRIM PANEL

Right-Hand Side

1шт.

36

87400686

TRIM PANEL

Upper Right

1шт.

37

87400685

TRIM PANEL

Upper Right

1шт.

38

76079009

FOAM INSULATION

Upper RH

1шт.

39

76079010

FOAM INSULATION

1шт.

40

76067327

INSULATING PANEL

Lower Front; RH Side

1шт.
