Запчасти Case 750K (09-25) - CAB - FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

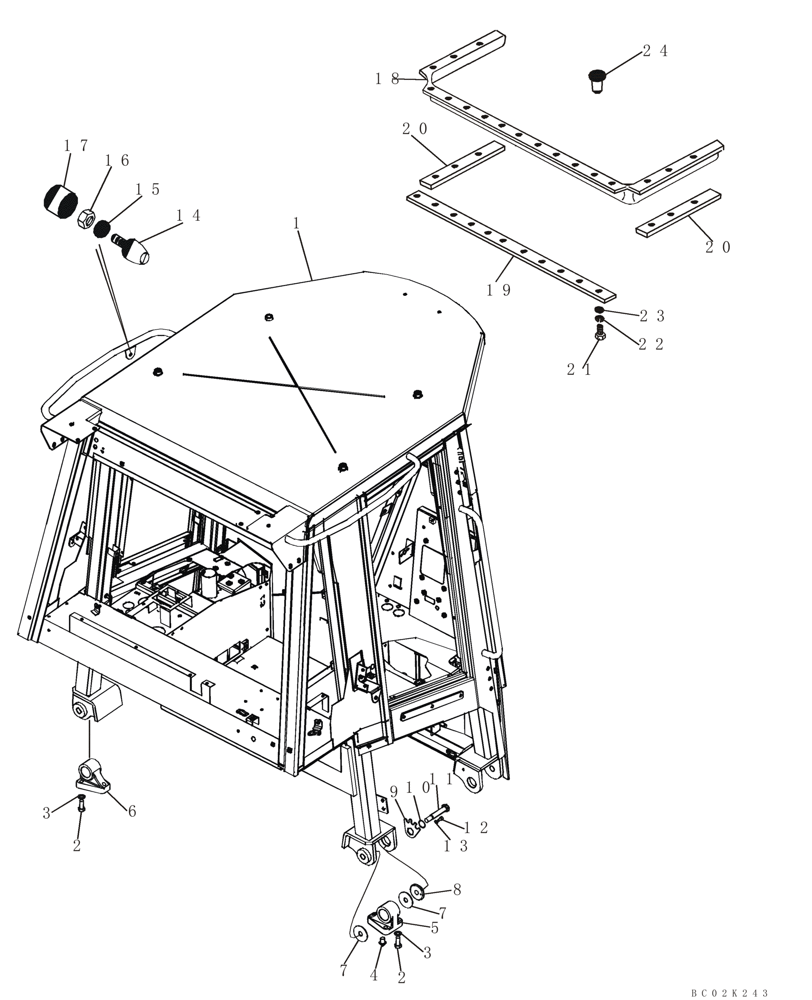

Схема запчастей Case 750K - (09-25) - CAB - FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS
7
9
3
23
18
bc02k243
14
20
2
21
6
10
3
12
4
11
7
1
22
19
15
8
13
5
16
17
20
24
2

Артикул

Название

Примечание

Количество

1

87454040

CAB

ASSY; Complete; Order From Machinery Price List

1шт.

2

514-1211

BOLT,Hex, M20 x 1.5 x 45mm, Cl 10.9

12шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

12шт.

4

87311743

SPECIAL PIN

Alignment; Right-Hand Side Only, 45.2 mm Long; Replaces 446640A1 50.2 mm Long Pin Used On Some Models

2шт.

5

86983061

SUPPORT ASSY.

Right-Hand; Includes (2) 79060730 Bushings; With Hole For Alignment Pin, Ref 4

2-4шт.

79060730

BUSHING

2шт.

6

79109793

SUPPORT

Left-Hand; Includes (2) 79060730 Bushings; Without Hole For Alignment Pin, Ref 4; May Be Replaced With Ref 5 Support On Some Models

2шт.

79060730

BUSHING

2шт.

7

79085441

WASHER,24.6mm ID x 90mm OD x 5mm Thk

8шт.

8

79084966

BUSHING

4шт.

9

79093828

PLATE

4шт.

10

13398976

SNAP RING,M40, Int

4шт.

11

79093830

SCREW,Hex, M24 x 2 x 150mm

4шт.

12

14420121

HEX SOC SCREW,M10 x 25mm, Cl 8.8

4шт.

13

76067743

WASHER,M10

4шт.

14

87400744

BLOCK

2шт.

15

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

16

11701714

NUT

M10

2шт.

17

71480911

DUST CAP

2шт.

18

76067280

GASKET

1шт.

19

76067266

STRIP

1шт.

20

76067267

STRIP

2шт.

21

13274211

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

16шт.

22

10571479

LOCK WASHER,M5

16шт.

23

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

16шт.

24

76067740

THREADED INSERT

M5

16шт.

Выбрано товаров: 26
