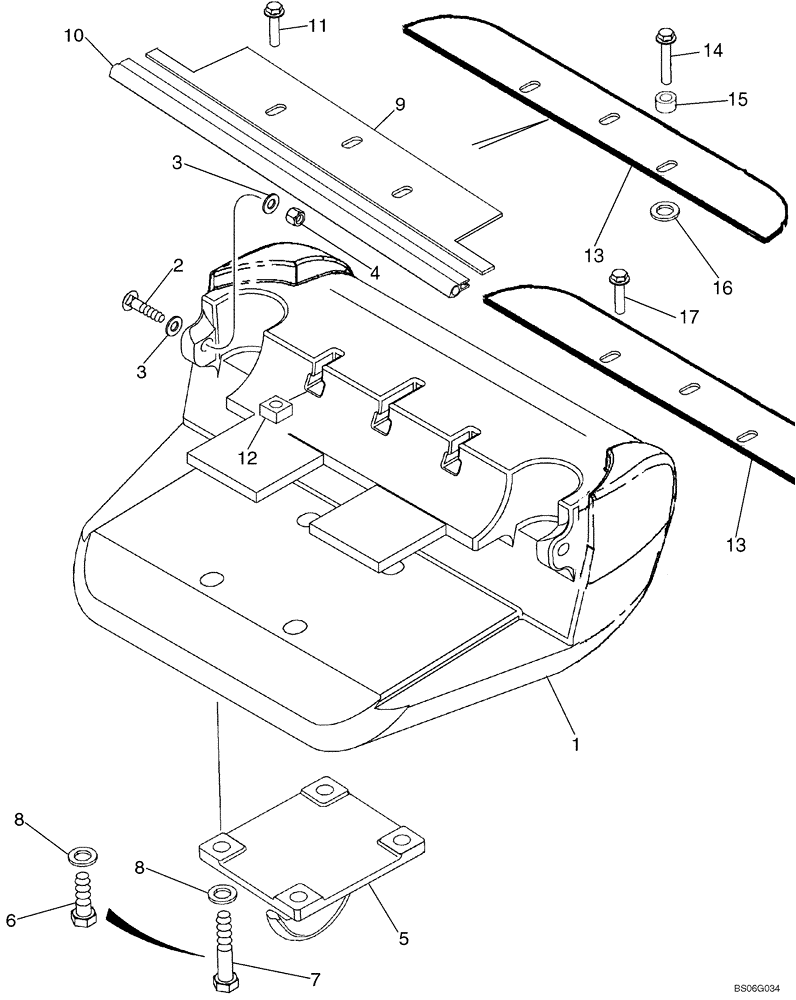

Запчасти Case 750K (09-06) - COUNTERWEIGHT, FRONT - HOOK, TOWING (09) - CHASSIS/ATTACHMENTS

1

87445295

COUNTERWEIGHT

Counterweight; Front; If Equipped

1шт.

2

811-12060

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2-4шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

5

450473A1

HOOK

Towing

1шт.

6

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

Used Without 87445295

4шт.

7

627-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9, Full Thd

Used with 87445295; If used, May be replaced by 827-20120, M20 x 120 Bolt, used on some models

4шт.

7

827-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

4шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

450730A1

PLATE

Lower Radiator; Used With Front Counterweight; If Used

1шт.

10

432943A1

SEAL

1шт.

11

844-12050

BOLT,Hex, M12 x 50mm, Cl 8.8

Used With 450730A1 Plate, Ref 9, If Used

3шт.

12

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

3шт.

13

87364244

PLATE

Lower Radiator Plate; Used With Front Counterweight; If Used

1шт.

14

844-12065

BOLT,Hvy Hex, M12 x 65mm, Cl 8.8

Flange, Used With 87364244 Plate, Ref 13, Ref 15 and Ref 16. No longer used, see Ref 17

3шт.

15

374318A2

SPACER

No longer used, not required

3шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

No longer used, not required

3шт.

17

844-12050

BOLT,Hex, M12 x 50mm, Cl 8.8

Flange, used w/o Ref 15 and Ref 16 (Spacer and Washer)

3шт.
