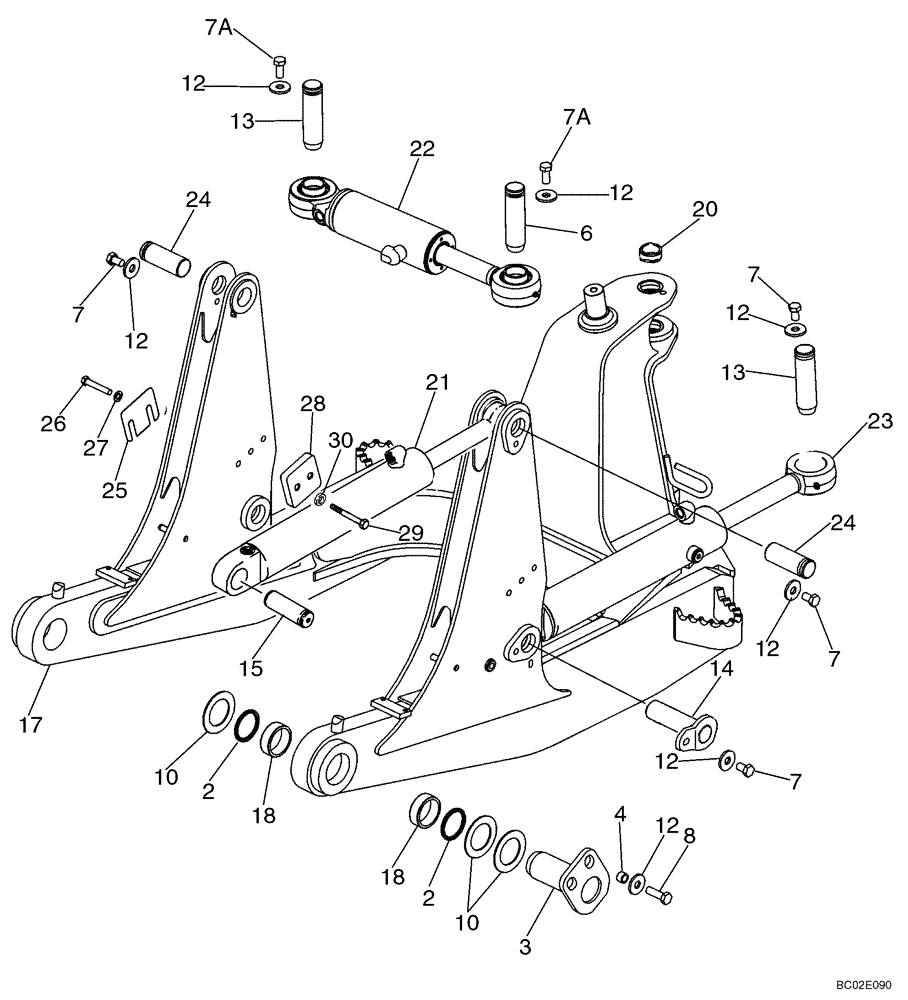

Запчасти Case 750K (09-01) - FRAME, LIFT - CYLINDERS, MOUNTING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
2
L113522
SEAL
Use Loctite No. 271
4шт.
B17500
LOCTITE
No. 271, 6 ml
1шт.
3
405608A1
PIN,63.6mm OD x 183mm L
2шт.
4
419041A1
SPACER
4шт.
6
435157A1
GROOVED PIN,44.42mm OD x 165mm L
Rod End; Tilt Cylinder
1шт.
7
627-16025
BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd
6шт.
7a
627-16035
BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd
2шт.
8
627-16050
BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd
4шт.
10
495-81283
WASHER,2 5/8" x 4" x .109"
Used As A Shim
6шт.
12
419223A1
WASHER
12шт.
13
435157A1
GROOVED PIN,44.42mm OD x 165mm L
Tilt and Angle Cylinders
3шт.
14
419205A1
PIN
Closed End; Angle Cylinder
2шт.
15
405607A1
GROOVED PIN,44.42mm OD x 165mm L
Lift Cylinder
2шт.
17
87345906
FRAME ASSY
Incl. Ref 18 - 20; Replaces 430895A1
1шт.
18
D33635
BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L
2-1/2 x 3 x 1
4шт.
20
D43940
BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L
1-3/4 x 2-1/4 x 1
2шт.
21
417854A1
CYLINDER ASSY.
89 ID x 395 mm Stroke; Lift; See Figure 08-11
2шт.
21
87361535R
REMAN-HYD CYLINDER
750K SERIES 2 CRAWLER (TIER 2) (1/05-), Reman for New PN 417854A1
2шт.
21
87361535C
CORE-HYD CYLINDER
Return Number
2шт.
22
412357A1
CYLINDER ASSY.,Double Acting, 44.4mm Rod, 147.8mm Stroke
89 ID x 148 mm Stroke; Tilt; See Figure 08-12
1шт.
22
412357A1R
REMAN-HYD CYLINDER
750K SERIES 2 CRAWLER (TIER 2) (1/05-)
1шт.
22
412357A1C
CORE-HYD CYLINDER
Return Number
1шт.
23
412359A1
CYLINDER ASSY.
89 ID x 396 mm Stroke; Angle; See Figure 08-13
2шт.
23
84135900R
REMAN-HYD CYLINDER
Reman for new P/N 412359A1
2шт.
23
84135900C
CORE-HYD CYLINDER
Return Number
2шт.
24
345410A1
GROOVED PIN
Lift Cylinder
2шт.
25
414988A1
SHIM
LGP Models; If Used
10шт.
26
814-12110
BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8
Use Loctite No. 243; LGP Models
4шт.
28
414987A1
WEAR PLATE
2шт.
29
814-12100
BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8
Use Loctite No. 243
4шт.
Выбрано товаров: 32
