Запчасти Case 750K (08-15) - VALVE, CONTROL - MOUNTING (08) - HYDRAULICS

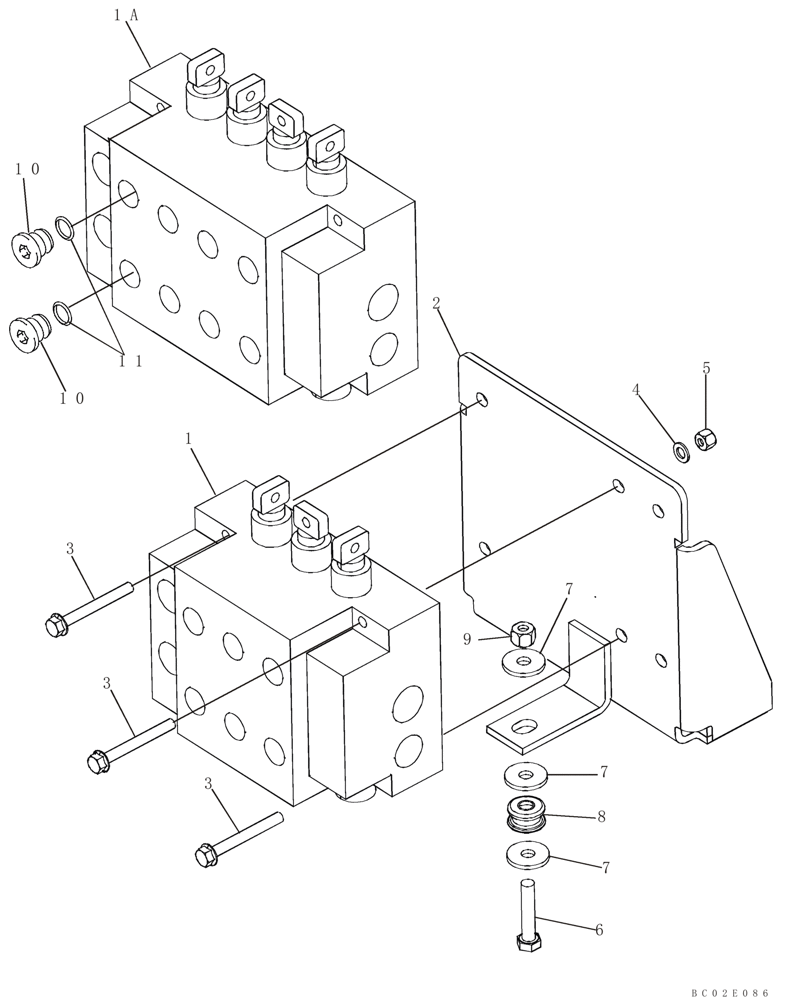

Схема запчастей Case 750K - (08-15) - VALVE, CONTROL - MOUNTING (08) - HYDRAULICS
2
1a
10
11
6
7
9
1
10
3
8
3
5
bc02e086
7
7
3
4

Артикул

Название

Примечание

Количество

1

87311632

HYDRAULIC VALVE

Three Spool; See Figure 08-18

1шт.

1a

87311631

HYDRAULIC VALVE

Four Spool; See Figure 08-18

1шт.

2

86990556

BRACKET, SUPPORTING

1шт.

3

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

3шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

6

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

3шт.

7

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

9шт.

8

296684A1

RUBBER MOUNTING

3шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

10

86512512

PLUG,7/8" - 14 ORB

Incl. Ref 11; Four Spool to Three Spool; Models without Auxiliary Equipment

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 12
