Запчасти Case 750K (08-09) - HYDRAULICS - RIPPER, VALVE TO REAR OF TRACTOR (08) - HYDRAULICS

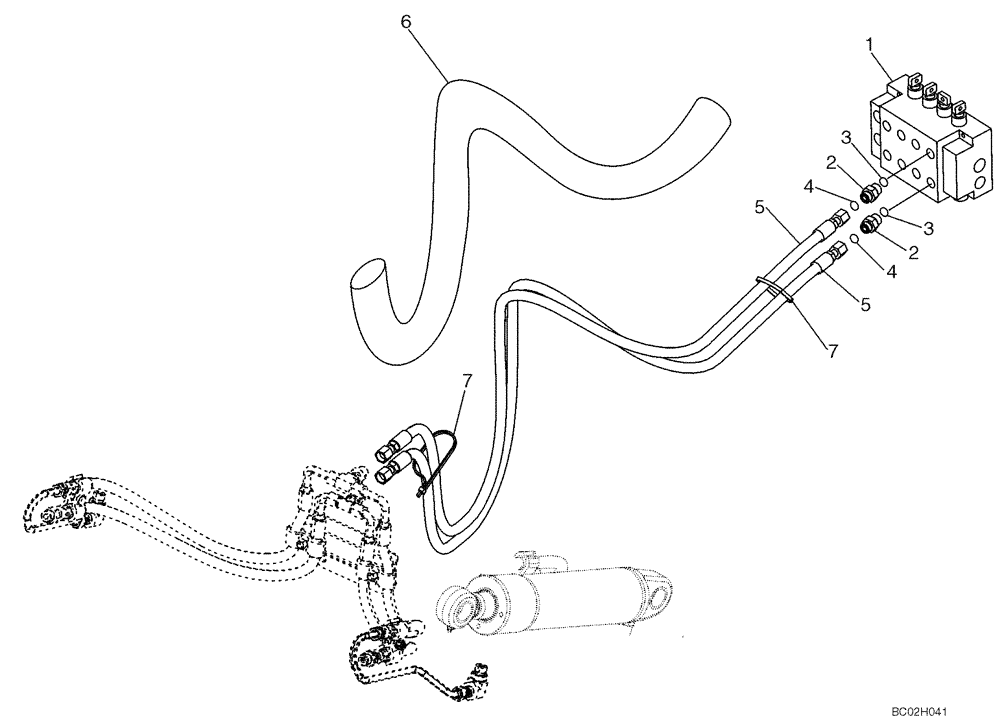

Схема запчастей Case 750K - (08-09) - HYDRAULICS - RIPPER, VALVE TO REAR OF TRACTOR (08) - HYDRAULICS
5
6
4
1
4
5
3
7
7
3
2
2

Артикул

Название

Примечание

Количество

1

87311631

HYDRAULIC VALVE

Four Spool Control Valve; See Figure 08-18

1шт.

2

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes Ref. 3, 4

2шт.

3

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

Boss End

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

5

87406312

HOSE ASSY.

1850 mm lg; 4th Spool Supply; Control Valve to Rear of Tractor

2шт.

6

87409050

SLEEVE

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

4шт.

Выбрано товаров: 7
