Запчасти Case 750K (08-08) - HYDRAULICS - ANGLE CIRCUIT (08) - HYDRAULICS

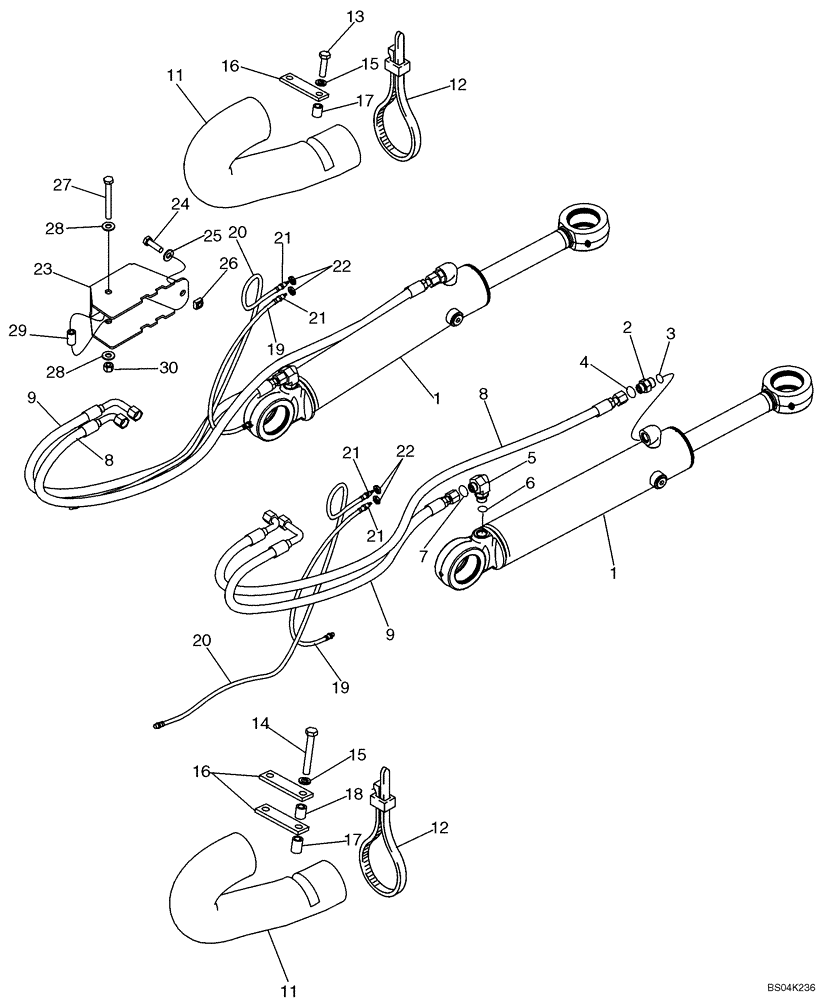

Схема запчастей Case 750K - (08-08) - HYDRAULICS - ANGLE CIRCUIT (08) - HYDRAULICS
8
9
1
20
20
30
12
5
29
11
26
13
21
19
3
23
2
17
15
28
1
22
27
12
19
9
14
17
11
21
7
25
8
6
18
28
4
16
16
15
22
21
24
21

Артикул

Название

Примечание

Количество

1

412359A1

CYLINDER ASSY.

89 ID x 396 mm Stroke; Angle; See Figure 08-13

2шт.

1

84135900R

REMAN-HYD CYLINDER

Reman for new P/N 412359A1

2шт.

1

84135900C

CORE-HYD CYLINDER

Return Number

2шт.

2

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes Ref. 3, 4

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

5

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl. Ref 6, 7

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

8

87309486

HOSE ASSY.,12.7mm ID x 1460mm L

1460 mm (57-1/2 in); To Rod End Of Cylinder

2шт.

9

87309487

HOSE ASSY.,12.7mm ID x 975mm L

975 mm (38-7/16 in); To Closed End Of Cylinder

2шт.

11

445338A1

HOSE PROTECTION,46.00 mm ID x 825.00 mm

Left Hand

3шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

13

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

14

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

15

892-11010

LOCK WASHER,M10

4шт.

16

435511A1

PLATE

3шт.

17

436110A1

SPACER

4шт.

18

436109A1

SPACER

2шт.

19

L74161

HOSE,3.56mm ID x 533.4mm L, SAE 100R7

533 mm (21 in); Incl. Ref 21

2шт.

20

L54694

HOSE,4.8mm ID x 1041mm L

Grease, 1041 mm (41 in); Incl. Ref 21

2шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

22

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT; Use Loctite No. 242

4шт.

B17422

LOCTITE

No. 242, 50 ml

1шт.

23

446320A1

COVER ASSY

2шт.

24

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

25

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

26

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10

2шт.

27

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

28

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

29

446431A1

SPACER

1шт.

30

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

Выбрано товаров: 32
