Запчасти Case 750K (08-03) - HYDRAULICS, EQUIPMENT - CONTROL VALVE TO THERMAL BYPASS VALVE AND FILTER (08) - HYDRAULICS

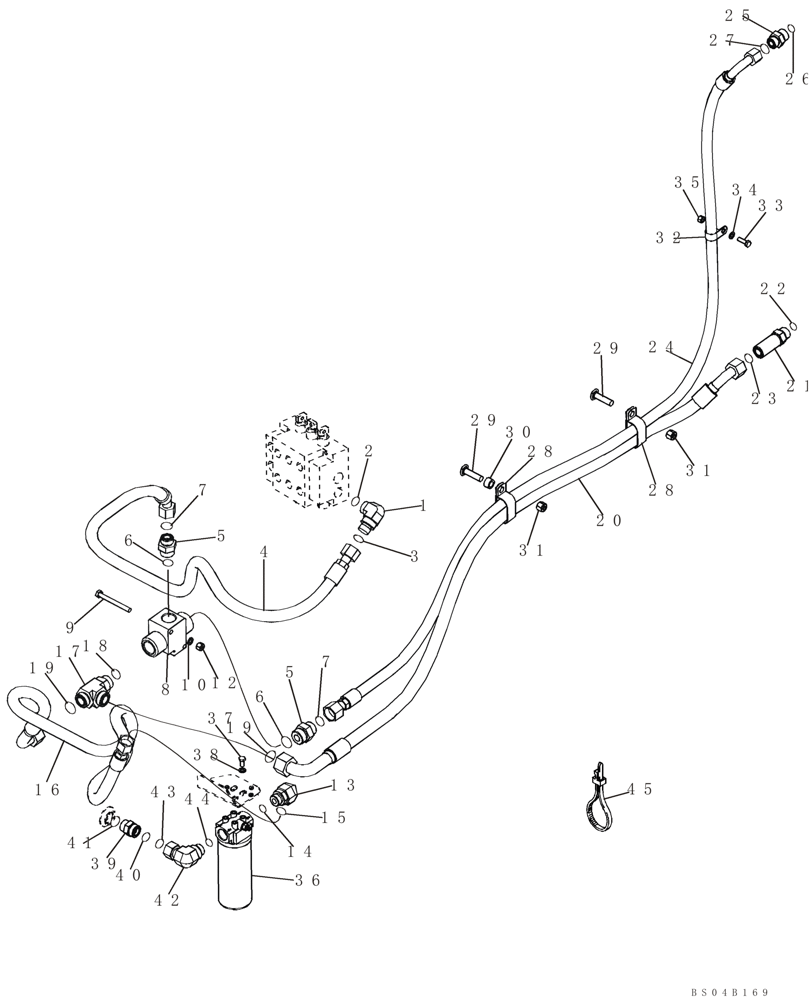

Схема запчастей Case 750K - (08-03) - HYDRAULICS, EQUIPMENT - CONTROL VALVE TO THERMAL BYPASS VALVE AND FILTER (08) - HYDRAULICS
5
41
6
7
44
2
19
13
4
34
29
38
32
33
9
24
10
26
23
5
20
27
12
31
21
6
36
45
7
28
35
3
43
14
1
31
25
30
29
bs04b169
28
22
42
39
8
18
16
40
17
37
19
15

Артикул

Название

Примечание

Количество

1

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Incl. Ref 2, 3

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

4

430380A1

HOSE ASSY.

1590 mm (62-5/8 in); Control Valve To Thermal Bypass Valve

1шт.

5

201-129

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl. Ref 6, 7

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

8

R46908

VALVE

Thermal Bypass Valve; See Figure 08-04

1шт.

9

87301279

CARRIAGE BOLT,Sht Sq Nk, M10 x 90mm, Cl 8.8

2шт.

10

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

201-355

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. Ref 14, 15

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

16

430381A1

HOSE ASSY.

1900 mm (74-13/16 in); Tank Filter To Thermal Bypass Valve

1шт.

17

201-407

TEE,1 7/16"-12 x 1 5/16"-12 Run, ORFS

Incl. Ref 18, 19

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

2шт.

20

430379A1

HOSE ASSY.

1440 mm (56-3/4 in); Thermal Bypass Valve To Cooler

1шт.

21

201-176

HYD CONNECTOR,1 3/16"-12 x 1 1/16"-12, ORFS Lg

Incl. Ref 22, 23

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

23

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

24

430373A1

HOSE ASSY.

2025 mm (79-3/4 in); Cooler To Thermal Bypass Valve

1шт.

87313817

CONDUIT

Sleve Attached To Ref 24 At Va;ve End; Not Illustrated

1шт.

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Used To Attach Sleeve; Not Illustrated

2шт.

25

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

Incl. Ref 26, 27

1шт.

25

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

Incl. Ref 26, 27

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Seal End

1шт.

28

242999A1

CLAMP

2шт.

29

811-12070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

2шт.

30

605210R1

SPACER,1/2" X-Strng Pipe x 1 1/8"

2шт.

31

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

32

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

33

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

35

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

36

426336A1

FILTER ASSY

See Figure 06-09

1шт.

37

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

39

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1 in; At Tank; Incl. Ref 40, 41

1шт.

40

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

41

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

42

201-393

ELBOW,90 Degree, 1 7/16"-12 Adj x 1 7/16"-12 Fem Sw, ORFS

Incl. Ref 43, 44

1шт.

43

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

44

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

45

87429176

STRAP

Blue, 203 mm (8 inch)

2шт.

45

87429171

STRAP

Brown, 203 mm (8 inch)

2шт.
