Запчасти Case 750K (06-11) - HYDROSTATIC MOTOR (06) - POWER TRAIN

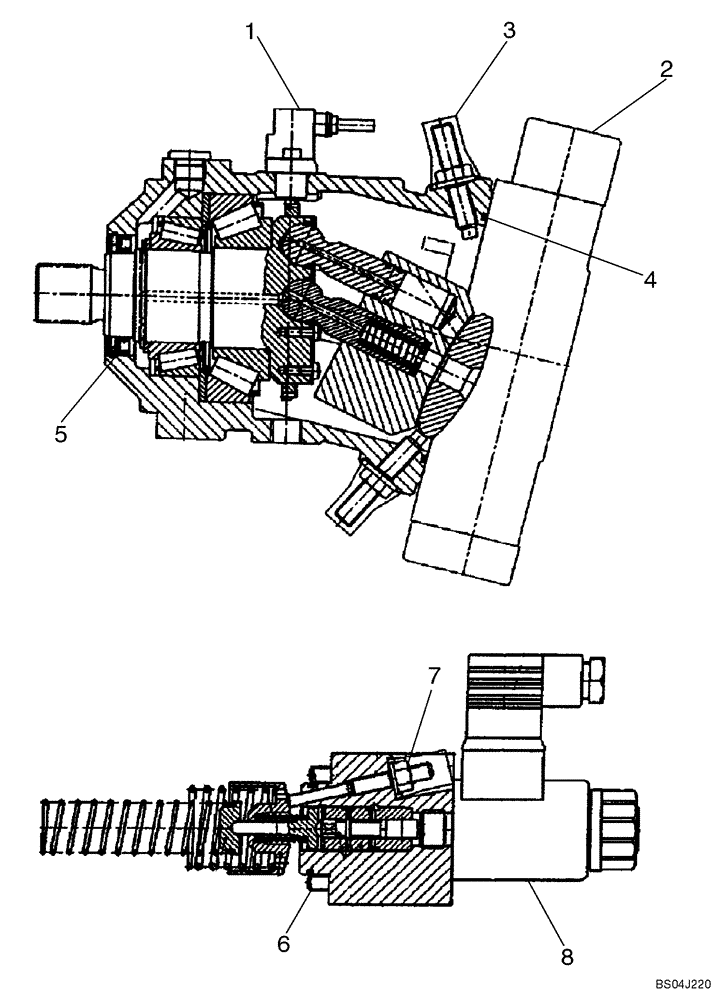

Схема запчастей Case 750K - (06-11) - HYDROSTATIC MOTOR (06) - POWER TRAIN
2
1
5
4
6
7
8
3

Артикул

Название

Примечание

Количество

401629A2

HYDROSTATIC MOTOR,80CC

Incl. 1 - 7, Also Incl. Parts On Figure 06-12

1шт.

401629A2R

REMAN-HYDROSTAT MOTO

Reman for New PN 401629A2

1шт.

401629A2C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

1

87440317

SENSOR

Motor Speed

1шт.

2

87441435

CONTROL BLOCK

1шт.

3

87441442

LOCK NUT

Seal Lock

2шт.

4

238-5257

O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro

1шт.

5

87441446

SEAL

Shaft Seal

1шт.

6

87441443

O-RING

Solenoid Base Mounting

1шт.

6

87516671

HEX SOC SCREW,M8 x 45mm, Cl 8.8

M8 x 45; Solenoid Base Mounting

4шт.

7

87441441

LOCK NUT

Seal Lock

1шт.

8

87441436

SOLENOID VALVE

Proportional

1шт.

Выбрано товаров: 12
