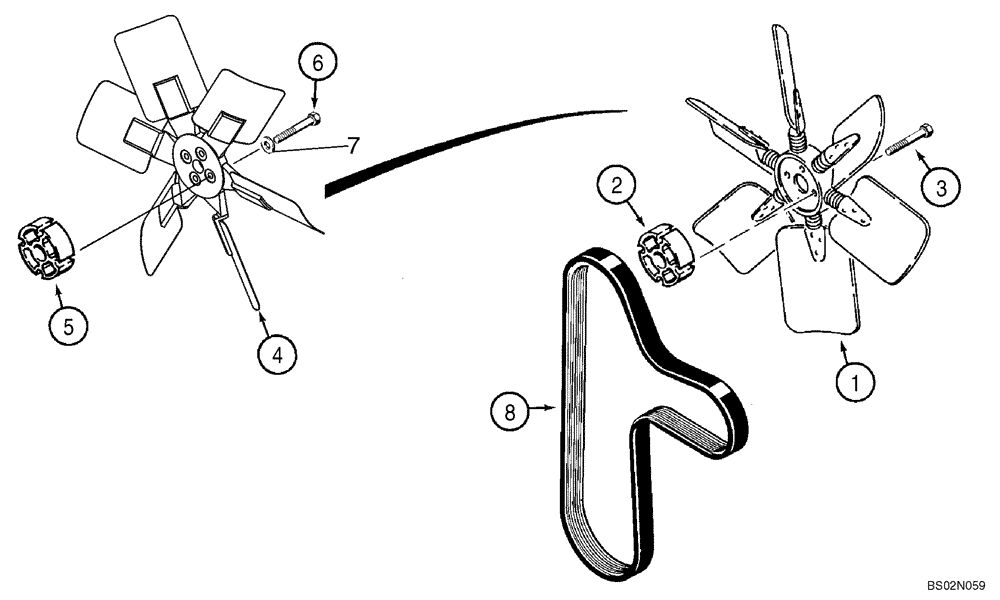

Запчасти Case 750K (02-02) - FAN - FAN BELT (02) - ENGINE

1

445656A1

FAN

550 mm, Reversible; If Equipped

1шт.

2

A184544

SPACER

24 mm; Used With Ref 1

1шт.

3

193425A1

FLANGE BOLT,M10 x 1.5 x 50mm

M10 x 50

4шт.

4

A173557

FAN

Pusher; If Equipped

1шт.

5

A184544

SPACER

24 mm; Used With Ref 4

1шт.

6

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

4шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

87452843

V-BELT,3.56 mm W x 1714.50 mm L, 8 Ribs

Engine Fan and Alternator

1шт.
