Запчасти Case 750K (05-01) - FRAME, TRACK - ROLLER AND RECOIL HOUSING 750K (11) - TRACKS/STEERING

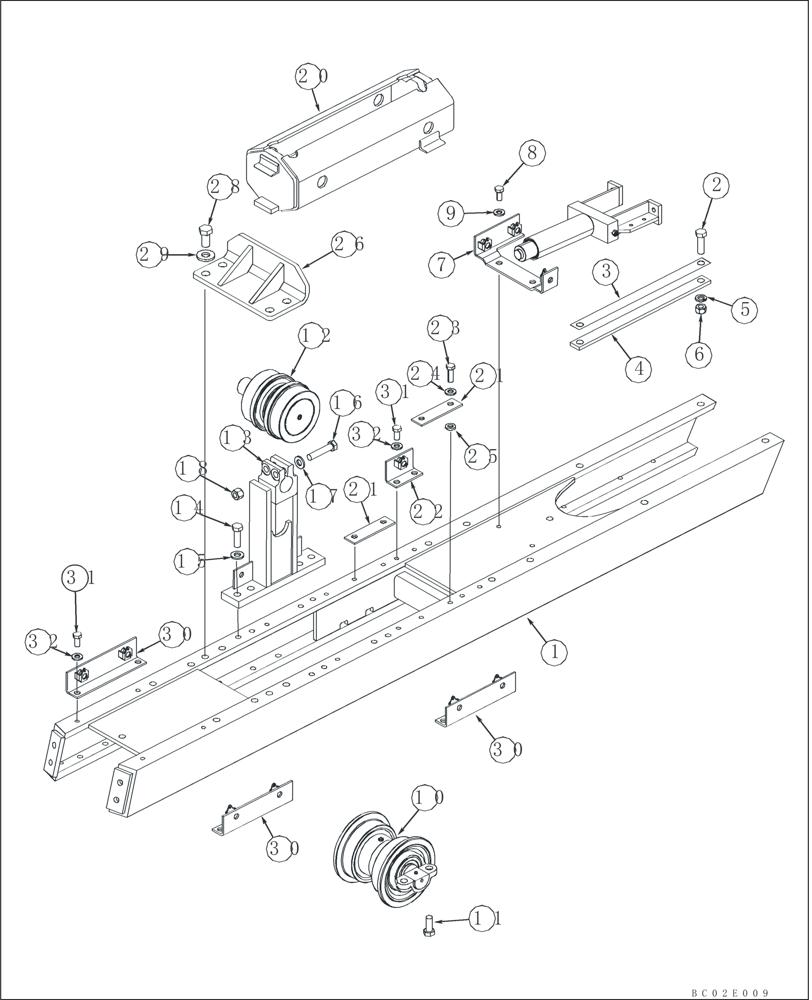

Схема запчастей Case 750K - (05-01) - FRAME, TRACK - ROLLER AND RECOIL HOUSING 750K (11) - TRACKS/STEERING
17
1
12
bc02e009
16
3
22
30
30
8
4
6
29
13
21
28
7
20
9
32
26
2
5
25
14
31
23
21
24
32
31
18
11
10
15
30

Артикул

Название

Примечание

Количество

1

87412377

FRAME

Track

2шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

3

87412378

SHIM

Idler Wear Strip

1шт.

4

87412375

BAR

Idler Wear Bar

4шт.

5

492-11062

BEARING WASHER,5/8"

8шт.

6

425-1010

NUT,5/8"-11, G5

8шт.

7

432182A1

BRACKET

Right-Hand; Track Adjuster

1шт.

7a

432179A1

BRACKET

Left-Hand; Track Adjuster; Not Illustrated

1шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

10

427112A1

ROLLER, TRACK

See Figure 05-07

12шт.

11

409-91024

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

LK .625 X 1.5 UNC GR5

48шт.

12

419373A1

ROLLER, TRACK

Carrier; See Figure 05-07

2шт.

13

419374A1

BRACKET, SUPPORTING

2шт.

14

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

15

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

8шт.

16

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

5/8 x 3

4шт.

17

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

18

232-41410

LOCK NUT,5/8"-11, GC

4шт.

20

419386A1

HOUSING ASSY.

Recoil; Component Parts Not Serviced Separately

2шт.

21

419387A1

STRAP

Plate

4шт.

22

430454A1

BRACKET

2шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

24

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

25

R24323

WASHER

8шт.

26

419391A2

BRACKET

Bracket; Stop; Recoil

2шт.

28

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3/4 x 1-1/2

8шт.

29

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

13/16 x 1-3/4 x 7/32

8шт.

30

430453A1

BRACKET

6шт.

31

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

16шт.

32

496-21053

WASHER,17/32" x 1 1/16" x .134"

16шт.

Выбрано товаров: 31
