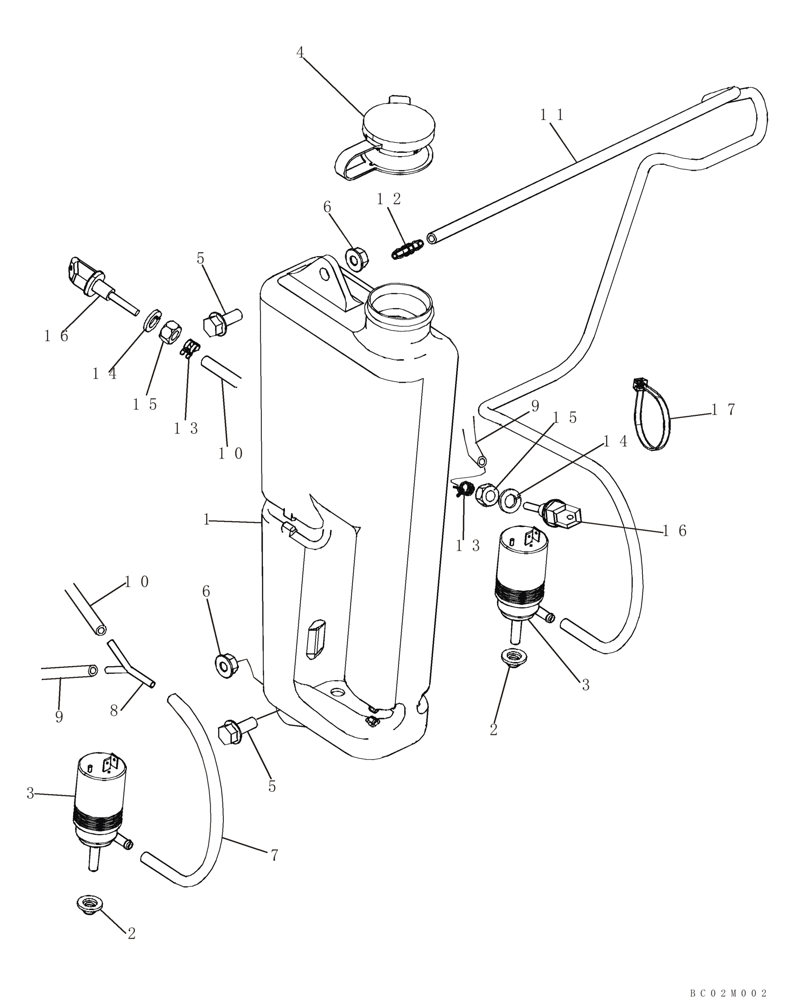

Запчасти Case 750K (09-34) - CAB - WASHER, WINDSHIELD (WITH Y-FITTING, REF 8, IF USED) (09) - CHASSIS/ATTACHMENTS

389423A3

RESERVOIR, WINDSHIEL

Tank Assembly; Incl. Ref 1 - 4; Not Available As An Assembly, Order Components

1шт.

1

386721A4

RESERVOIR

Windshield Washer Tank

1шт.

2

196830A1

GROMMET

2шт.

3

E47238

PUMP,12V

Motor

2шт.

4

307130A1

COVER

1шт.

5

905-8020

BOLT,Hex Flg, M8 x 20mm

M8 x 20

2шт.

6

832-4748

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

7

87409799

HOSE

240 mm (9-1/2 in); Cut From 397154A1; Out To Y-Fitting

1шт.

8

282922A1

FITTING

Y-Type

1шт.

9

87410841

HOSE

2520 mm (99-1/4 in); Cut From 397154A1; Out To Right-Hand Nozzle

1шт.

10

87409800

HOSE

1425 mm (56-1/8 in); Cut From 397154A1; Out To Left-Hand Nozzle

1шт.

11

87409801

HOSE

1500 mm (59-1/16 in); Cut From 397154A1; Out To Cab

1шт.

397154A1

HOSE WASHER

100 ft

1шт.

12

87410341

FITTING

Straight Fitting

1шт.

13

305578A1

CLAMP,7.65mm - 8.76mm

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

284154A1

NOZZLE,3/8" - 16

Includes A Steel and Rubber Washer, Which Are Not Serviced Separately

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.
