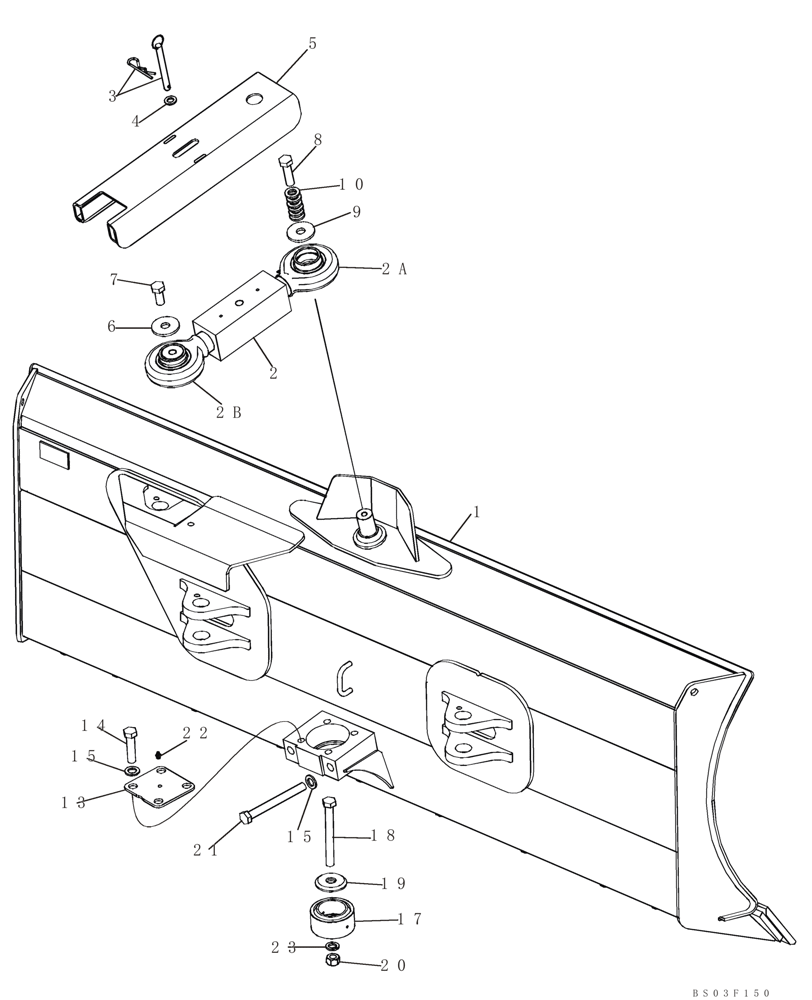

Запчасти Case 750K (09-02) - DOZER BLADE - MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

See Figure 09-03 For Dozer Blade Options

1шт.

435616A2

LINK ASSY.

Link Assy; Pitch; Incl. 2 - 2B

1шт.

2

NSS

NOT SOLD SEPARAT

Connector; Component Part Not Serviced, Order 435616A2 Link Assy

1шт.

2a

NSS

NOT SOLD SEPARAT

Bearing, Rod End; Left Hand Thread; Component Part Not Serviced, Order 435616A2 Link Assy

1шт.

2b

NSS

NOT SOLD SEPARAT

Bearing, Rod End; Right Hand Thread; Component Part Not Serviced, Order 435616A2 Link Assy

1шт.

3

104824A1

PIN,12.7mm OD

Incl cable and hair pin

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

5

440581A1

COVER ASSY

Pitch Adjusting Tool; Pitch Link

1шт.

6

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

7

895-30103

WASHER,M16 x 56 x 5

1шт.

8

627-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9, Full Thd

Hex, M16 x 55, 10.9, Full Thd

1шт.

9

895-30103

WASHER,M16 x 56 x 5

1шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

13

418868A1

COVER PLATE

1шт.

14

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

15

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

6шт.

17

405892A1

BUSHING,69.85mm ID

1шт.

18

828-20180

BOLT,Hex, M20 x 2.5 x 180mm, Cl 10.9

M20 x 180

1шт.

19

418828A1

WASHER

1шт.

20

829-1420

NUT,M20, Cl 10

1шт.

21

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

M20 x 190

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

23

892-11020

LOCK WASHER,M20

1шт.
