Запчасти Case 750K (08-16) - CONTROLS - LEVER AND LINKAGE, THREE SPOOL VALVE (08) - HYDRAULICS

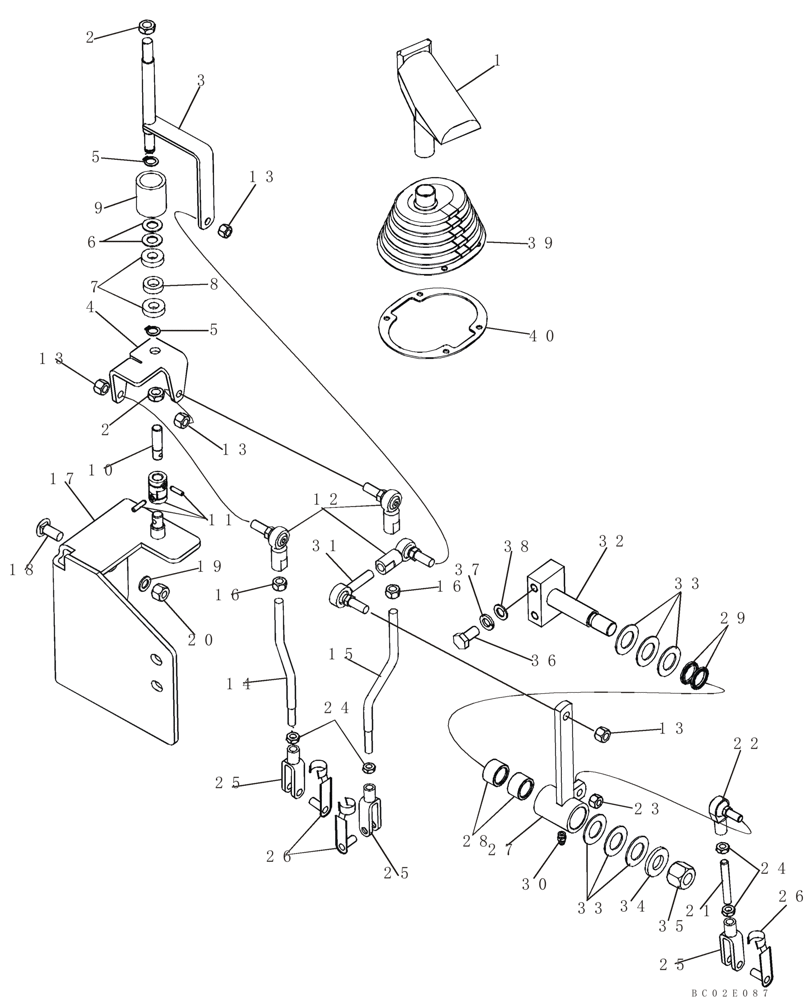

Схема запчастей Case 750K - (08-16) - CONTROLS - LEVER AND LINKAGE, THREE SPOOL VALVE (08) - HYDRAULICS
24
1
5
35
25
33
25
2
37
29
19
3
12
4
34
23
17
5
2
26
13
31
11
13
14
13
32
36
10
16
8
24
33
bc02e087
16
21
40
15
6
28
18
26
22
9
13
7
27
20
25
38
30
39

Артикул

Название

Примечание

Количество

1

R58490

HANDLE

1шт.

2

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

3

411309A1

LEVER ASSY.

1шт.

4

426960A2

MOUNTING PLATE

1шт.

5

100-1450

SNAP RING,#50, Ext

2шт.

6

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

17/32 x 1 x 1/16

2шт.

7

411099A1

BALL BEARING,12.69mm ID x 28.57mm OD x 7.94mm W

2шт.

8

411100A1

SPACER, RING

1шт.

9

411098A1

BEARING HOUSING

1шт.

10

434759A1

SHAFT

Pivot

1шт.

11

83965600

UNIVERSAL JOINT

Used With 103-1187 Ring

1шт.

103-1187

SNAP RING,#87, Ext

2шт.

12

R47940

BALL JOINT

3/8; Female; Left-Hand Thread

3шт.

13

232-4646

LOCK NUT,3/8"-24, GC

4шт.

14

426917A3

LINKAGE

Rod; Lift

1шт.

15

426918A3

LINKAGE

Rod; Tilt

1шт.

16

425-116

NUT,3/8" - 24, Gr 5

2шт.

17

434760A3

MOUNTING PLATE

1шт.

18

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

4шт.

19

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

21

446424A1

THREADED ROD

Angle

1шт.

22

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

Rod End; Female

1шт.

23

232-4605

LOCK NUT,5/16"-24, GC

1шт.

24

425-155

JAM NUT,Jam, 5/16"-24, G5

4шт.

25

437143A2

ADJUSTABLE CLEVIS,5/16" - 24

5/16

3шт.

26

427208A1

PIN ASSY.,7.9mm OD x 61.74mm L

5/16

3шт.

27

432365A2

LEVER

Angle; Incl. Ref 28 - 30

1шт.

28

L31166

NEEDLE BEARING

2шт.

29

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

Oil

2шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

31

R47941

JOINT TURNING

Male

1шт.

32

437131A1

ROLLER SHAFT

1шт.

33

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

6шт.

34

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

35

832-10416

NUT,M16 x 2, Cl 8

1шт.

36

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

37

892-11010

LOCK WASHER,M10

2шт.

38

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

39

438449A1

BOOT

1шт.

40

449681A1

RETAINER

1шт.

Выбрано товаров: 41
